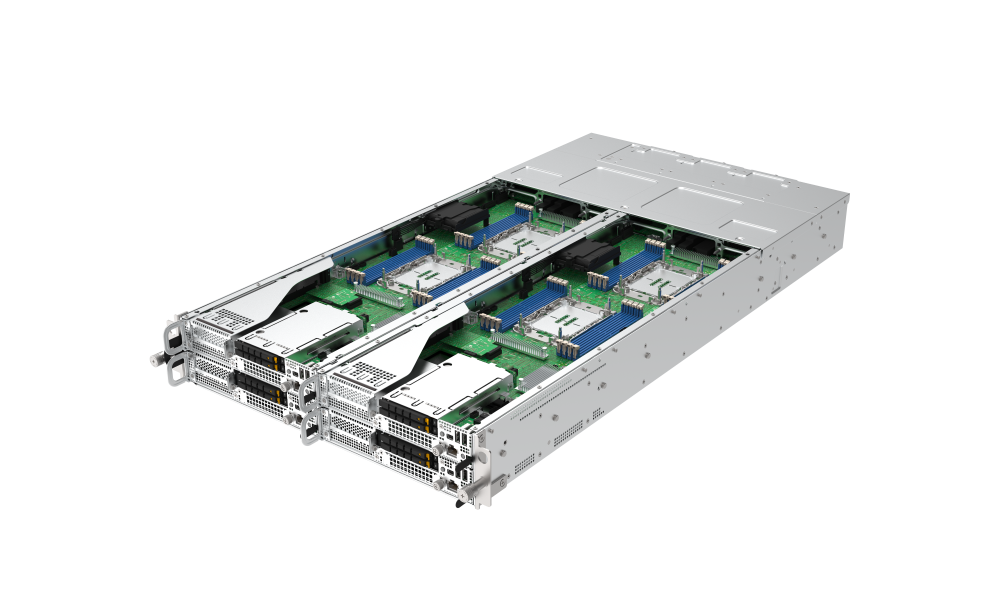

SD220-8

SD220-8

  • Dual 4th / 5th Gen Intel® Xeon® Scalable Processors
  • DIMM Type: DDR5 RDIMM, up to 5600 MT/s
  • 4 * 2.5" SATA/SAS/NVMe U.2 (7mm) (Node)
  • 2 * M.2 (Type 2280) (Node)

Specifications

CPU

Dual 4th / 5th Gen Intel® Xeon® Scalable Processors


Dimensions

442mm (W) x 850mm (D) x 87.3mm (H)

17.40inch (W) x 33.46inch (D) x 3.44inch (H)

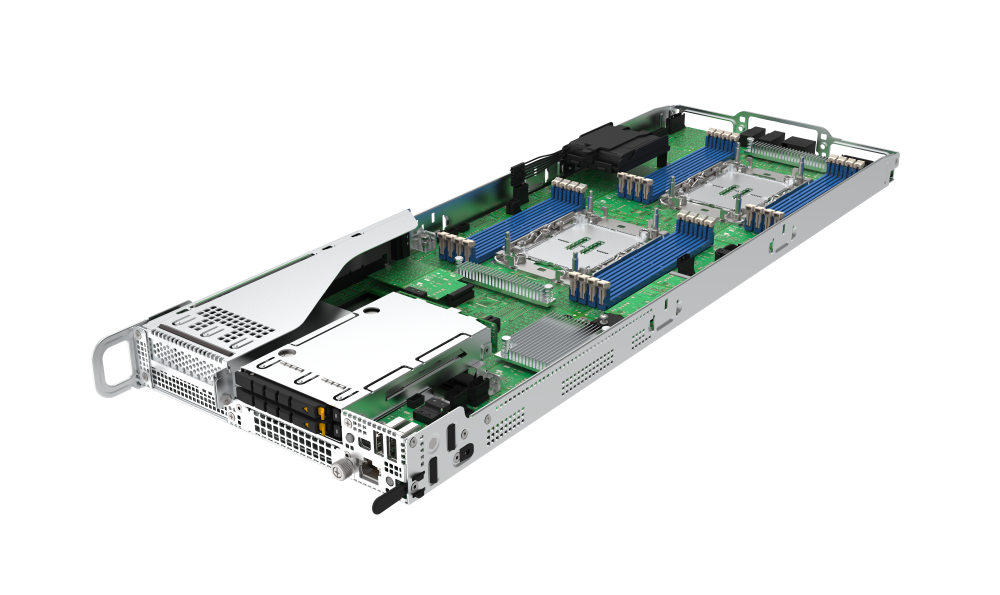

Memory (Node)
DIMM Type: DDR5 RDIMM/LRDIMM (up to 5600 MT/s)

DIMM Count: 16 DIMM Slots



Storage

Front:

4 * 2.5” SATA/SAS/NVMe U.2 (7mm)



Internal:

2 * M.2 (Type 2280)



For U.2 drives:

Intel® Virtual RAID on CPU (VROC) RAID 0, 1, 10, 5



PCIe Slot (Node)

SSD x4:

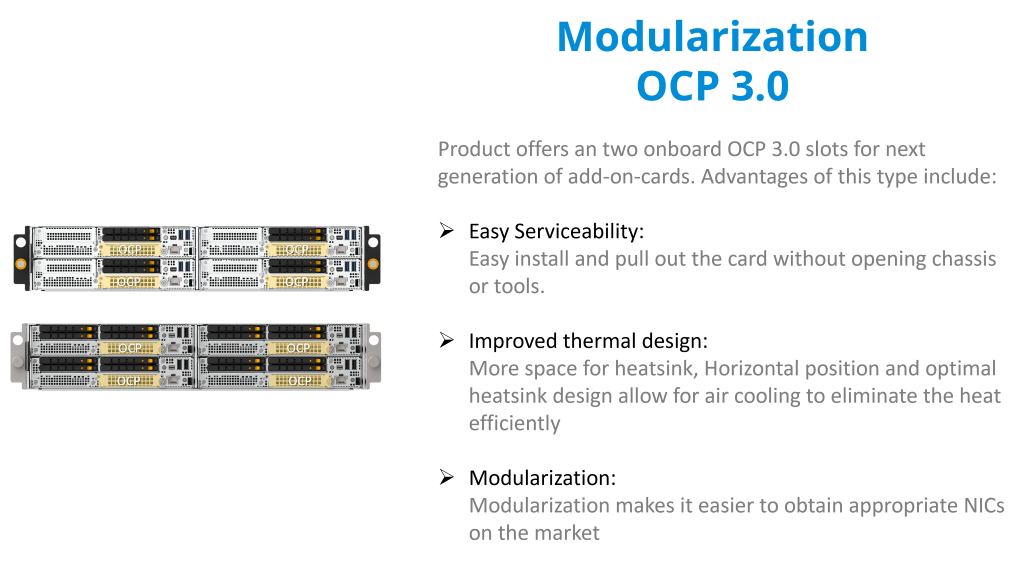

1 * OCP 3.0

1 * HHHL PCIe Gen5 x16

SSD x2:

1 * OCP 3.0

2 * HHHL PCIe Gen5 x16



BMC / CMC

ASPEED AST 2600

ASPEED AST 2620



Security (Node)

TPM 2.0 (optional)

PFR 3.0 (optional)



Power Supply
1600W 3+1 Redundant, Platinum/Titanium

Power Supply

I/O Ports (Node)

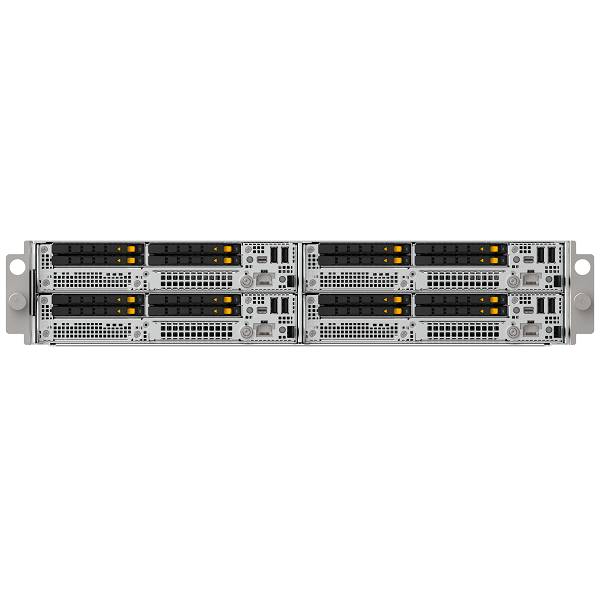

Front:

•1 * UID Button

•1 * Power Button

•1 * Mini Display port

•2 * USB 3.2 Gen1 ports

•1 * 1GbE Management port

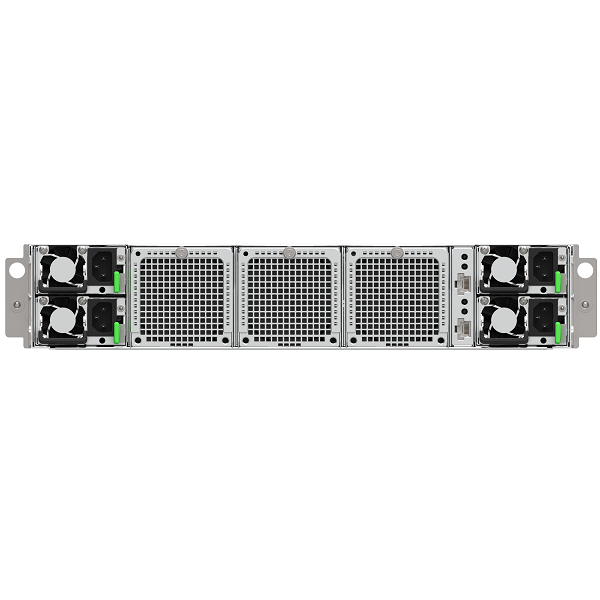

Rear:

•1 * CMC Reset Button

•2 * CMC Management Ports



Internal:

•1 * USB 3.2 Gen1 Type A

•1 * COM port header
