SD211-8A

CPU (Node)

Dual AMD EPYC™ Milan 7003 Series Processor Family

Dimensions

442mm (W) x 835mm (D) x 87mm (H)

17.40inch (W) x 32.87inch (D) x 3.43inch (H)

Memory (Node)

DIMM Type: DDR4 RDIMM (up to 3200 MT/s)

DIMM Count: 16 DIMM Slots

Storage

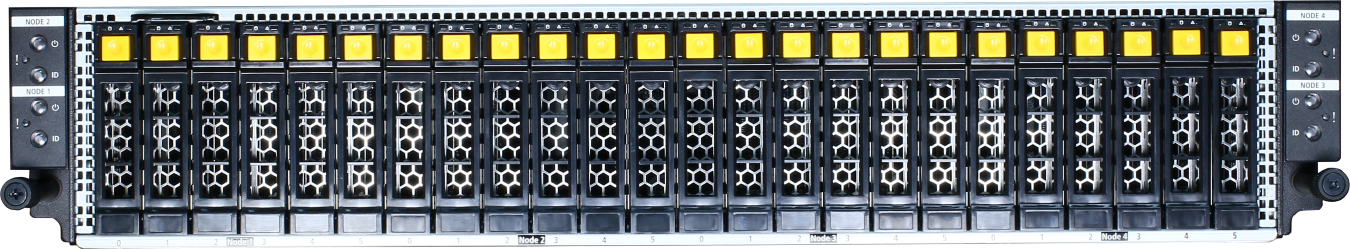

Front:

• 24 * 2.5" SATA/SAS

• 8 * 2.5" SATA/SAS/NVMe U.2 + 16 * 2.5" SATA/SAS

Internal:

• 2 * M.2 (Type 2280), per Node

PCIe Slot (Node)

• 1 * HHHL PCIe Gen4 x16

• 1 * HHHL PCIe Gen4 x8

• 1 * OCP 2.0 (Connector A, B)

Security

TPM 2.0 (optional)

Power Supply

• 2000W 1+1 Redundant, Platinum

• 2400W 1+1 Redundant, Platinum

BMC

ASPEED AST 2500

I/O Ports (Node)

Front:

• 1 * UID Button

• 1 * Power Button

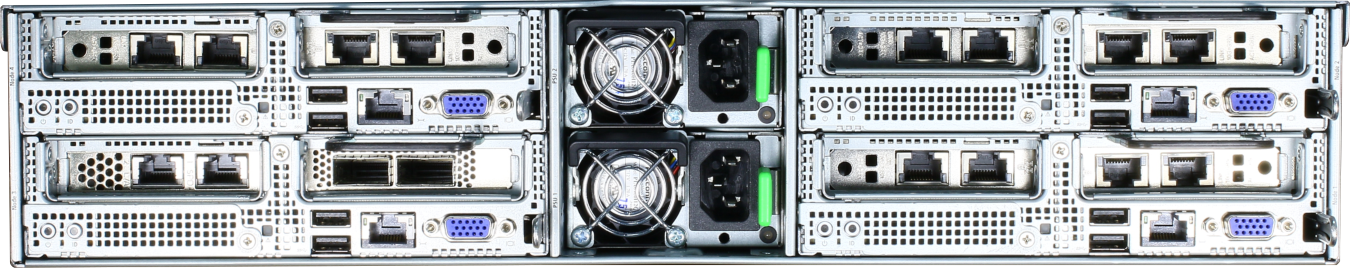

Rear:

• 1 * Power Button

• 1 * UID Button

• 1 * VGA port

• 2 * USB 3.2 Gen1 ports

• 1 * 1GbE Management port

Internal:

• 1 * USB 3.2 Gen1 port Type-A
