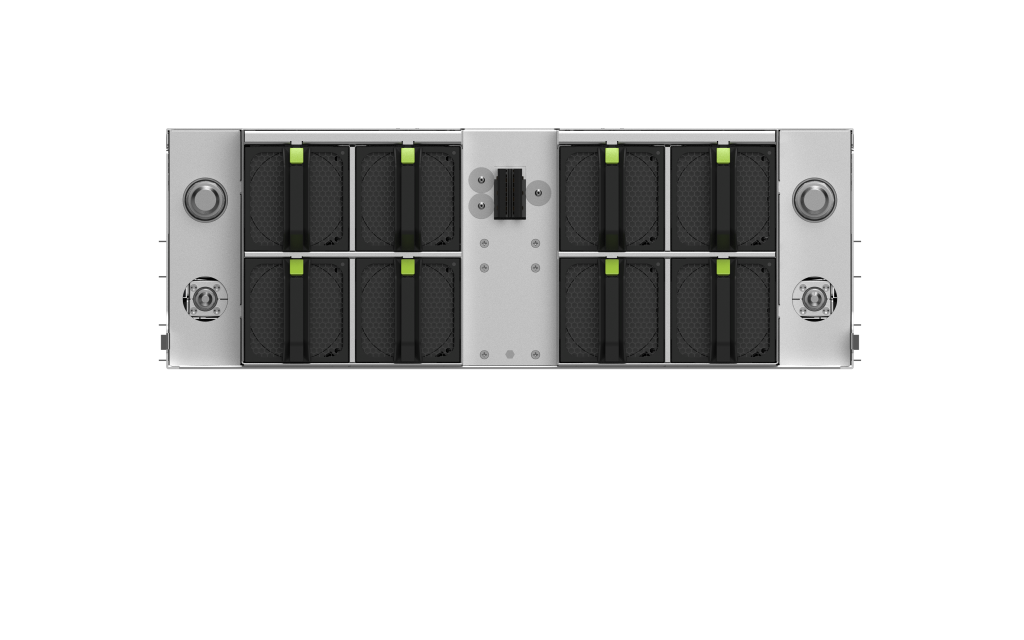

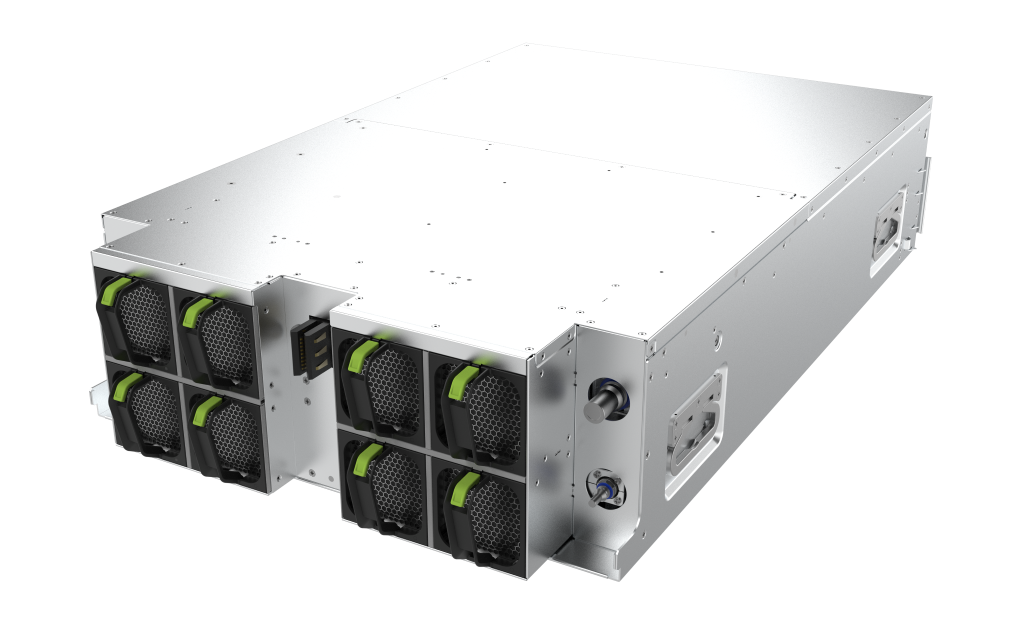

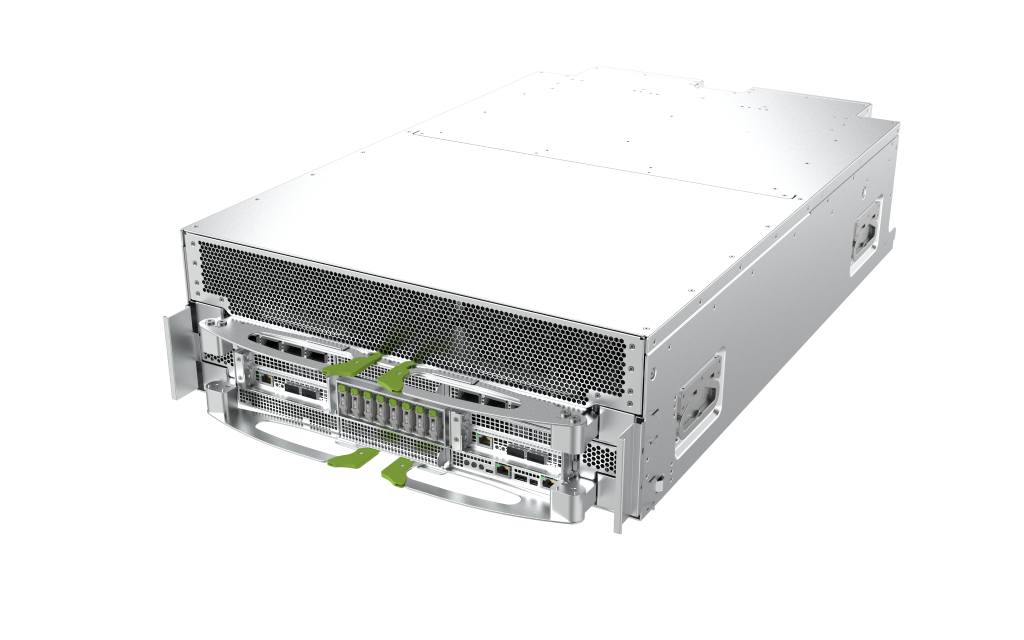

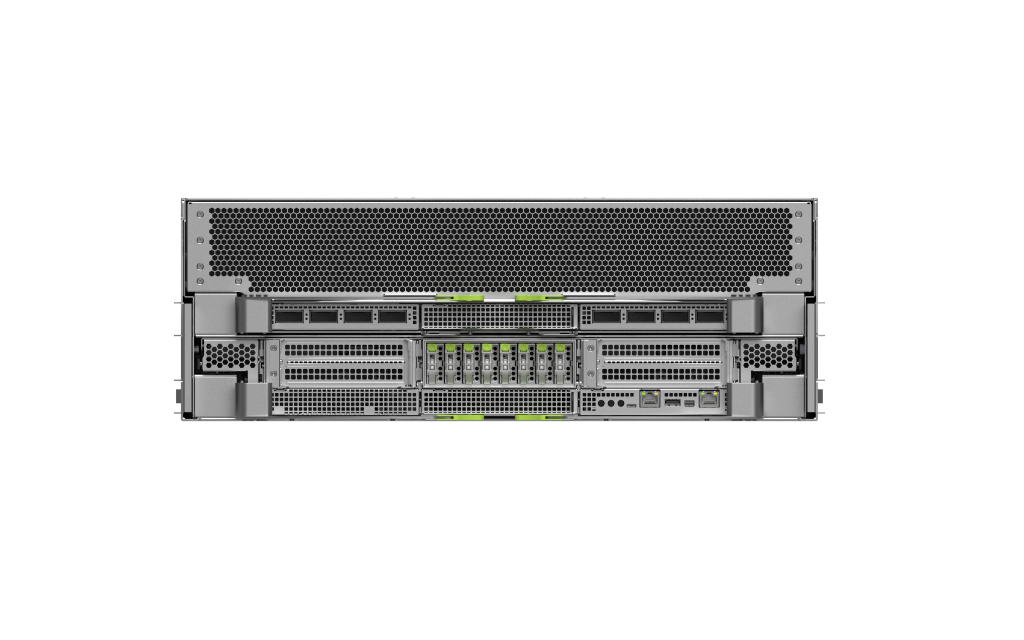

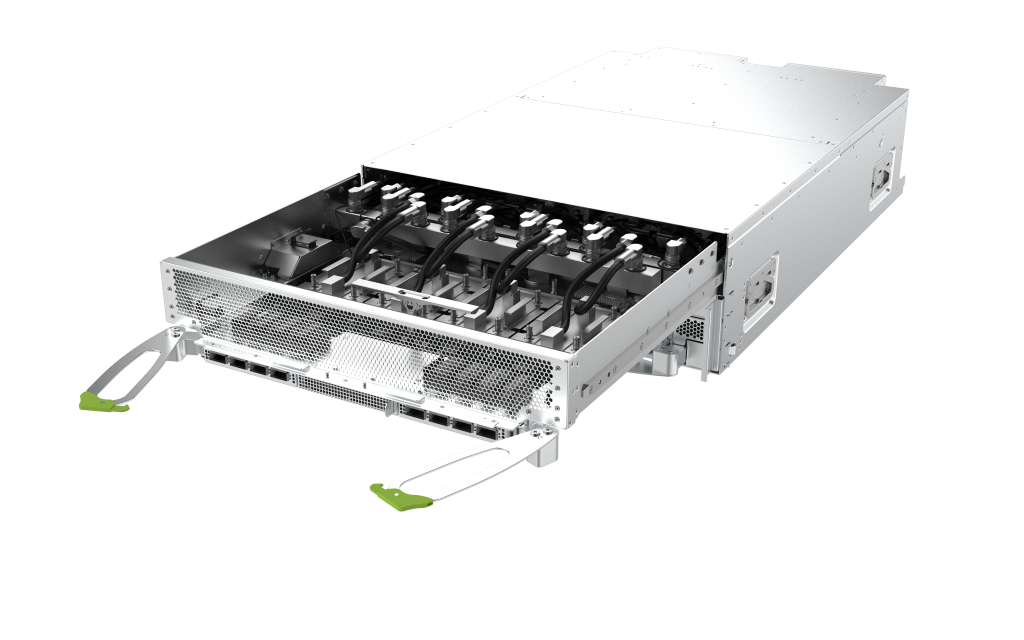

OG430-2-L1
- High Computing Performance - Powerful Dual Intel Xeon 6 series processor
- Maximum Accelerated Performance with NVIDIA HGX™ architect - Support up to 8 NVIDIA Blackwell Ultra GPUs
- Optimized scale-up solution for HPC & AI from training to inference
Specifications
CPU
Dual 6th Gen Intel® Xeon® Scalable Processors
Dimensions
537mm (W) x 802.6mm (D) x 188mm (H)
21.14 in (W) x 31.60 in (D) x 7.40 in (H)
Memory
Memory Type: DDR5 RDIMM (up to 6400 MT/s)
DIMM Slot: 32 DIMM Slots
Storage
Front:
Up to 8 * PCIe Gen5 x4 E1.S
Internal:
2 * 2280 Type M.2
PCIe Slot
• 4 * FHFL PCIe Gen5 x16
• 1 * OCP TFF PCIe x8
Security
TPM 2.0 (optional)
Power Supply
• DC Busbar
I/O Ports
Front:
• 8 * 800G OSFP port through integrated NVIDIA ConnectX®-8 SuperNICs. (IB 800G XDR or Eth 2x 400GbE per NIC)
• 1 * 1GbE RJ45 I210 Lan port
• 2 * 1GbE RJ45 dedicated management port(AST2600)
• 1 * USB 3.0 port
• 1 * Mini-DP Port
• 1 * Power LED / button
• 1 * UID LED / button
• 1 * Reset button
• 1 * URAT debug port
