Advanced Cooling Keeping AI at Full Power
Liquid cooling infrastructure engineered for the density demands of modern AI.
In partnership with Rayonnant
From Rack to Room
Solutions that scale to 2,000 kW and beyond
L2L and L2A
Liquid-to-liquid for liquid-ready.
Air-assisted for everyone else.
Redundancy by Design
Hot-swap redundancy built in from day one
A cooling solution for every deployment
AI racks generate more heat than air alone can remove. Compal can address both sides of that equation — liquid-cooled facilities and transitional environments alike.
L2L · In-Rack

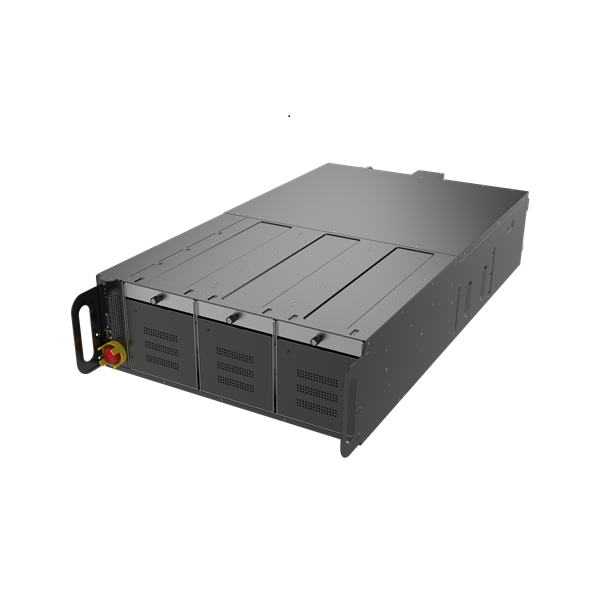

C200
4OU · 200 kW · Liquid-to-Liquid
Specifications
Heat Exchange Mode Liquid-to-Liquid
Cooling Capacity 200 kW
Chassis Height / Dimension 4OU / 534(W) × 892(D) × 188.6(H) mm
Secondary Supply / Return Temp 40–50°C
Industrial Connectivity SNMP · Modbus RTU
Pump Configuration 2+1 Hot-Swap
Power Input DC 48V / 54V (Wide Range)
Power Consumption (Rated) 3.8 kW
Remote Interface Web GUI / / Redfish API
Certifications CE / UL
L2L · In-Row

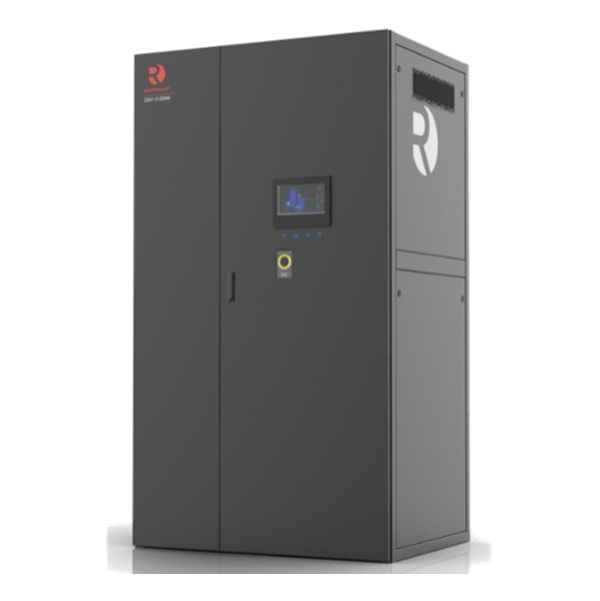

C2000-R
2,000 kW for Liquid-Cooled Data Centers
Specifications
Heat Exchange Mode Liquid-to-Liquid
Cooling Capacity 2000 kW
Dimension Cabinet · 2,300(W) × 1,400(D) × 2,500(H) mm
Secondary Supply / Return Temp 25–40 °C
Approach Temperature 3K
Pump Configuration 2+1 Hot-Swap
Power Supply 61 kW Rated Draw
Industrial Connectivity Modbus TCP/RTU
Management Interface 10” local touchscreen
Certifications CE / UL
L2A · Sidecar

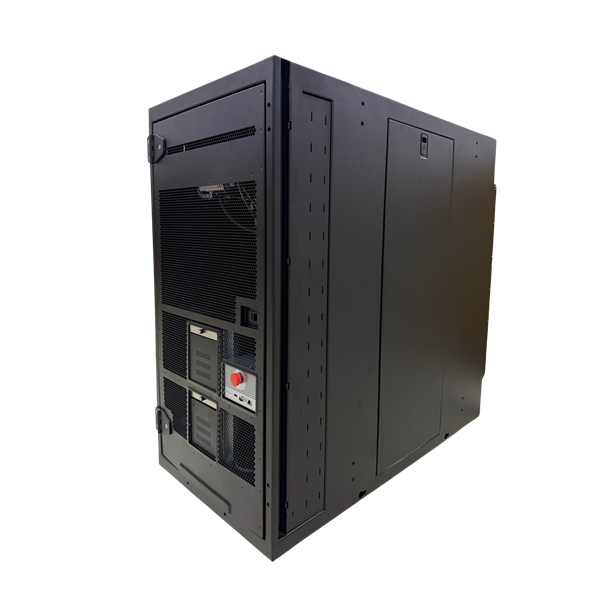

C50
50 kW for Air-cooled Data Centers
- No facility water loop required. Deploys DLC servers into air-cooled environments without infrastructure overhaul — the bridge for data centers mid-transition.
Specifications
Heat Exchange Mode Liquid-to-Air
Cooling Capacity 50 kW
Chassis Height / Dimension 22OU · 600(W) × 1,360(D) × 1,233(H) mm
Secondary Supply / Return Temp 35–55 °C
Power Consumption (Rated) 6 kW
Pump Configuration 1+1 Hot-Swap
Power Input 346~480V / 3 phase / 50 Hz / 60 Hz
Industrial Connectivity SNMP · Modbus RTU
Remote Interface Web GUI / Redfish API
Certifications CE / UL
