Specifications
CPU

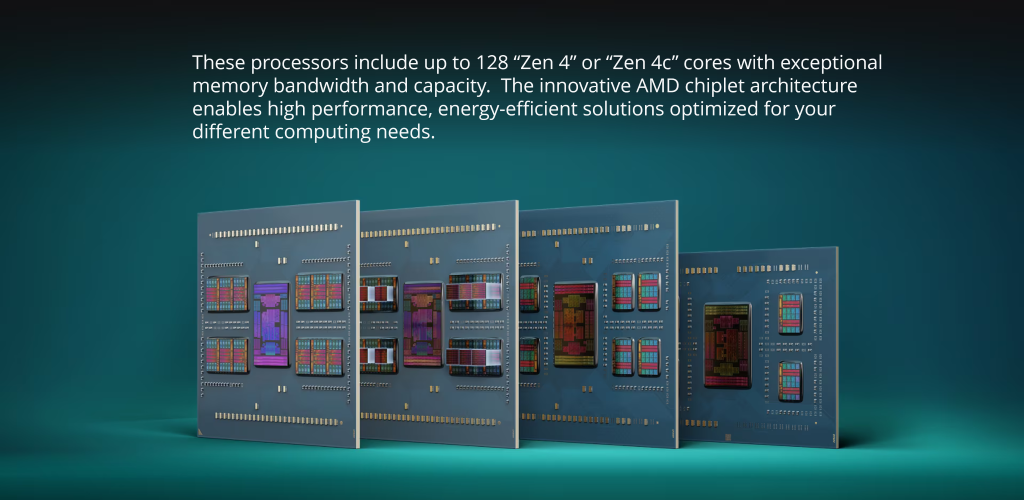

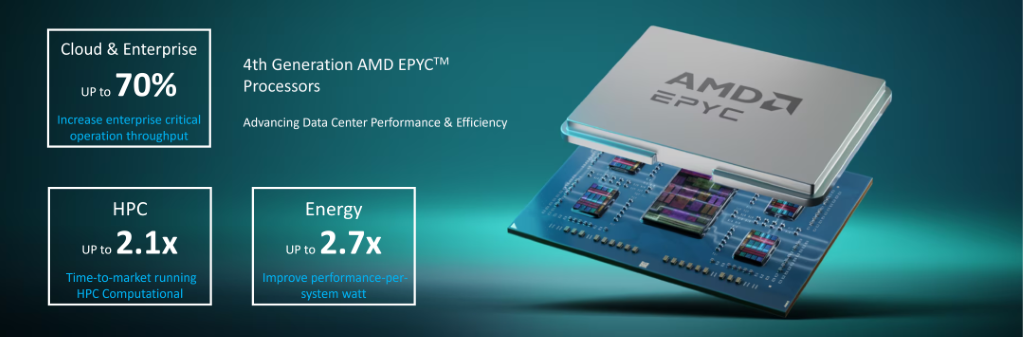

Dual AMD EPYC™ Genoa 9004 Series Processor Family
Dimensions
438mm (W) x 770mm (D) x 87mm (H)
17.24inch (W) x 30.31inch (D) x 3.43inch (H)
Memory
DIMM Type: DDR5 RDIMM (up to 4800 MT/s)
DIMM Count: 24 DIMM Slots
Storage

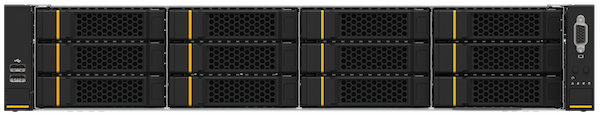

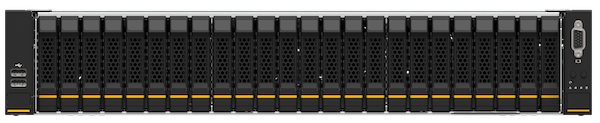

Front:
•24 * 2.5” SATA/SAS
•24 * 2.5” SATA/SAS4/NVMe U.2 PCIe Gen5
•12 * 3.5” SATA/SAS4/NVMe U.2 PCIe Gen5
•12 * 3.5” SATA/SAS
Rear:
•2 * 2.5” SATA/SAS
•2 * 2.5” SATA/SAS4/NVMe U.2 PCIe Gen5
Internal:
•2 * M.2 (Type 2280)
PCIe Slot
General SKU:
2 * FHFL PCIe Gen5 x16
2 * FHFL PCIe Gen5 x8
2 * FHHL PCIe Gen5 x8
1 * HHHL PCIe Gen5 x8
1 * OCP 3.0 PCIe Gen5 x16
1 * OCP 3.0 PCIe Gen5 x8
GPU SKU:
2 * FHFL(Double Width) PCIe Gen5 x16
2 * FHHL PCIe Gen5 x16
1 * HHHL PCIe Gen5 x8
1 * OCP 3.0 PCIe Gen5 x16
1 * OCP 3.0 PCIe Gen5 x8
Security
TPM 2.0 (optional)
NIST SP 800-193 (optional)
Power Supply
•1200W 1+1 Redundant, Platinum
•1300W 1+1 Redundant, Titanium
•1600W 1+1 Redundant, Platinum/Titanium
•2400W 1+1 Redundant, Titanium
I/O Ports
Front:
•1 * VGA port
•1 * UID Button
•1 * Power Button
•1 * Reset Button
•1 * USB 2.0 port
•1 * USB 3.2 Gen1 port

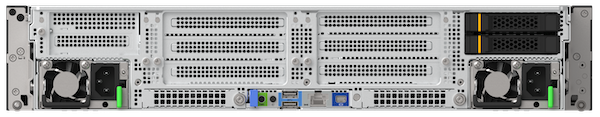

Rear:
•1 * Mini Display port
•1 * Power Button
•1 * UID Button
•2 * USB 3.2 Gen1 ports
•1 * 1GbE Management port
Internal:
•1 * USB 3.2 Gen1 port Type-A
•8 * SATA ports on-board
