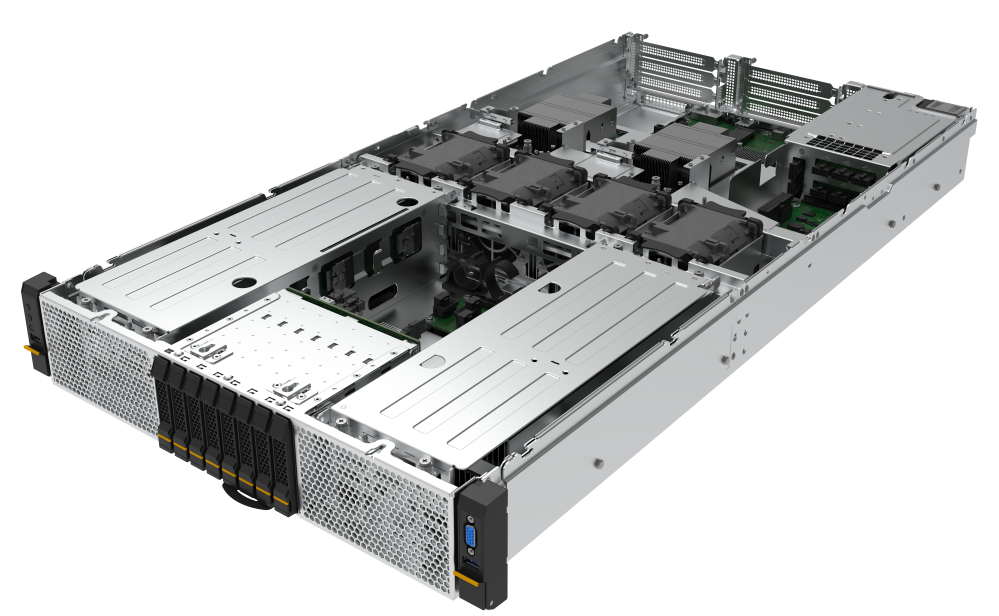

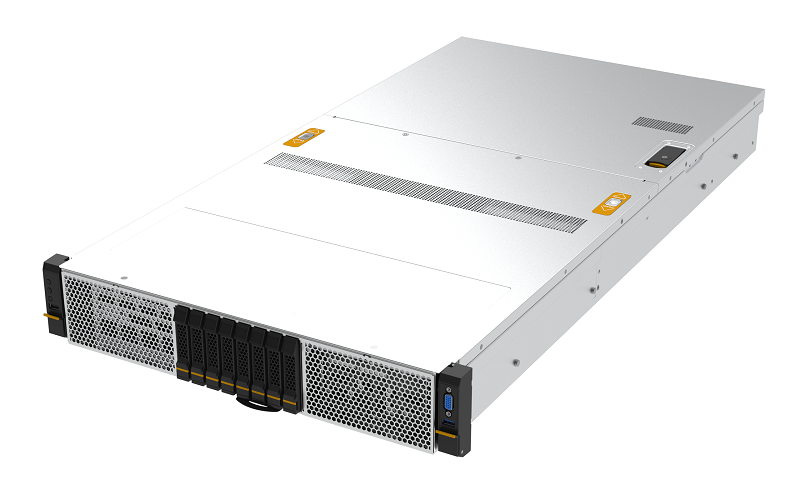

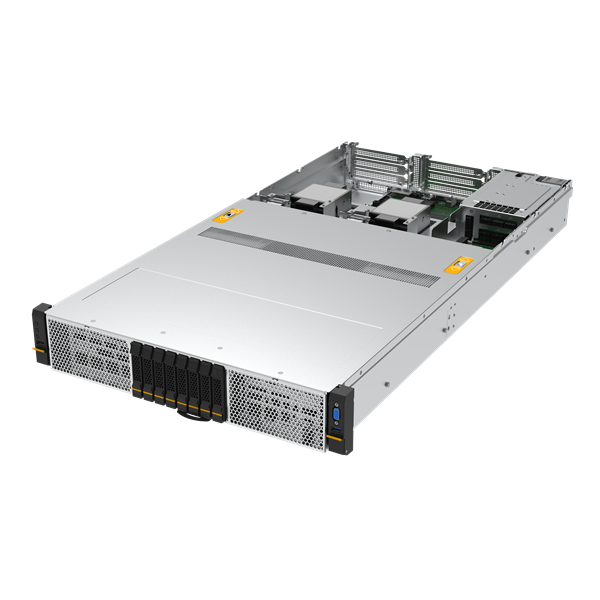

SG220-2

CPU

Dual 4th Gen Intel^® Xeon^® Scalable Processors

Dimensions

438mm (W) x 850mm (D) x 87mm (H)

17.24inch (W) x 33.46inch (D) x 3.43inch (H)

Memory

DIMM Type: DDR5 RDIMM up to 5600 MT/s

DIMM Count: 16 DIMM Slots

Storage

Front:

•4 * 2.5” SATA/SAS4/NVMe PCIe Gen5 + 4 * 2.5" SATA/SAS4

Internal:

•2 * M.2 (Type 2280)

For U.2 drives:

Intel® Virtual RAID on CPU (VROC) RAID 0, 1, 10, 5

PCIe Slot

•2 * FHFL PCIe Gen5 x16

•2 * FHFL PCIe Gen5 x8

•2 * FHHL PCIe Gen5 x8

•1 * OCP 3.0 PCIe Gen5 x16

GPU Slot

•4 * GPU(FHFL/Double Width) PCIe Gen5 x16

Security

TPM 2.0 (optional)

PFR 3.0 (optional)

Power Supply

1600W 2+1 Redundant, Platinum/Titanium

2400W 2+1 Redundant, Platinum/Titanium

I/O Ports

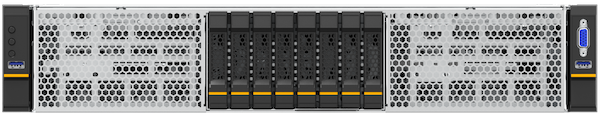

Front:

•1 * VGA port

•1 * UID Button

•1 * Power Button

•2 * USB 3.2 Gen1 port

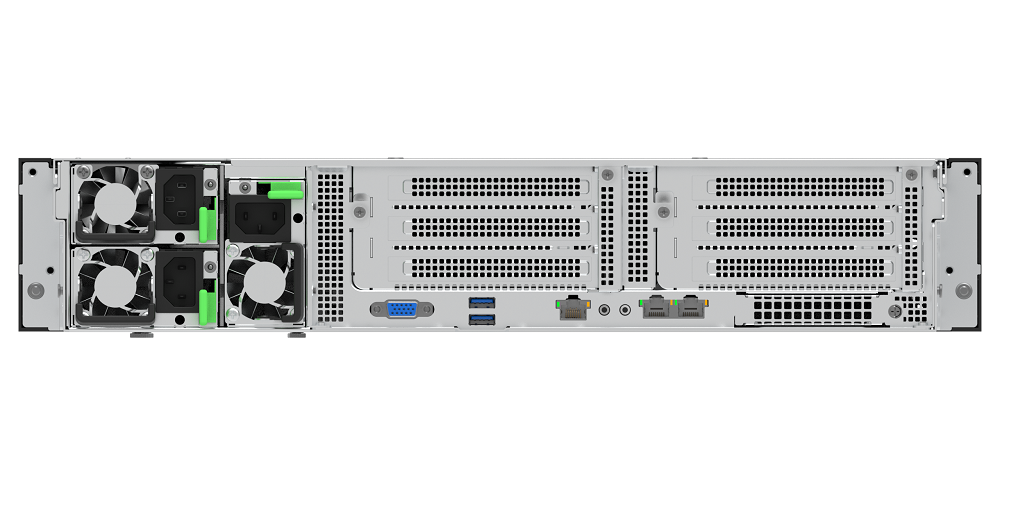

Rear:

•1 * VGA port

•1 * UID Button

•1 * Power Button

•2 * USB 3.2 Gen1 ports

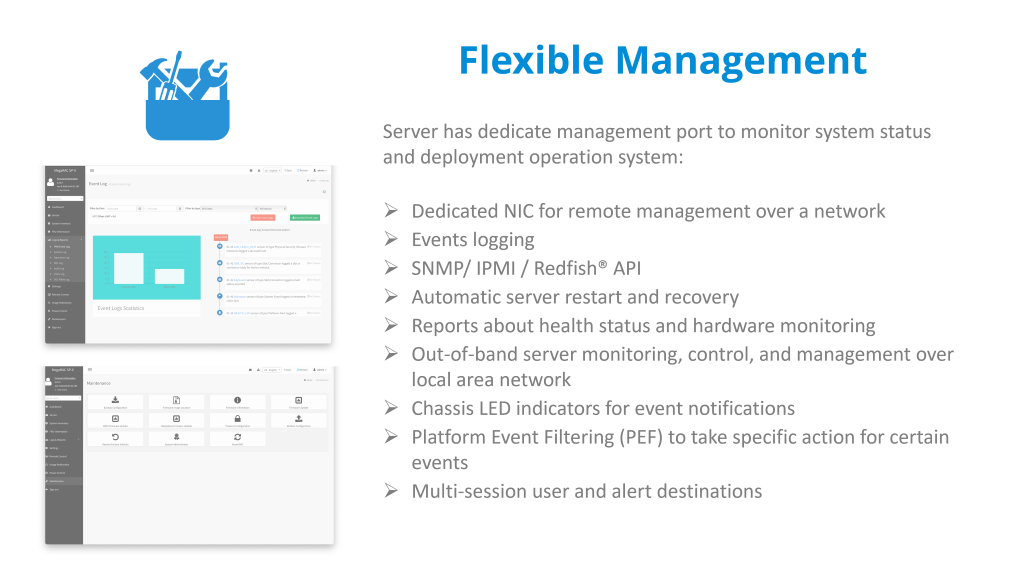

•1 * 1GbE Management port

•2 * 1GbE

Internal:

•1 * USB 2.0 port Type-A

•2 * SATA ports on-board
