SD221-8A

CPU

Dual AMD EPYC^™ Genoa 9004 Series Processor Family

Dimensions

442mm (W) x 850mm (D) x 87.3mm (H)

17.40inch (W) x 33.46inch (D) x 3.44inch (H)

Memory (Node)

DIMM Count: 24 DIMM Slots\

Storage

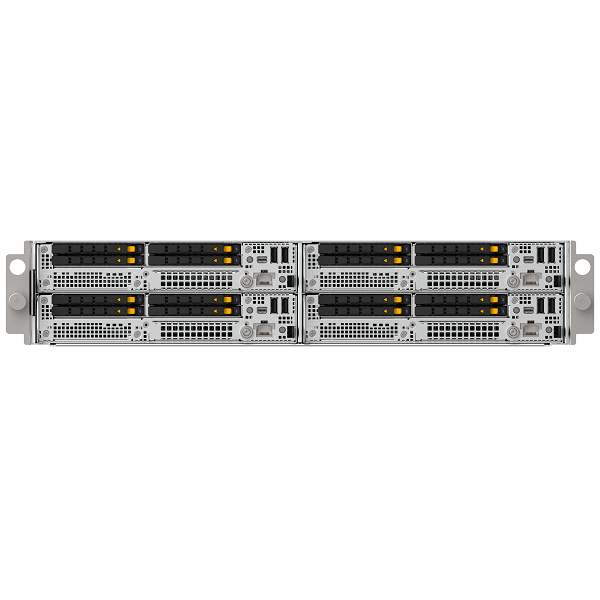

Front:

4 * 2.5” SATA/SAS/NVMe U.2 (7mm)

Internal:

2 * M.2 (Type 2280)

PCIe Slot (Node)

SSD x4:

1 * OCP 3.0

1 * HHHL PCIe Gen5 x16

SSD x2:

1 * OCP 3.0

2 * HHHL PCIe Gen5 x1

BMC / CMC

ASPEED AST 2600

ASPEED AST 2620

Security (Node)

TPM 2.0 (optional)

Power Supply

1600W 3+1 Redundant, Platinum/Titanium

I/O Ports (Node)

Front:

•1 * UID Button

•1 * Power Button

•1 * Mini Display port

•2 * USB 3.2 Gen1 ports

•1 * 1GbE Management port

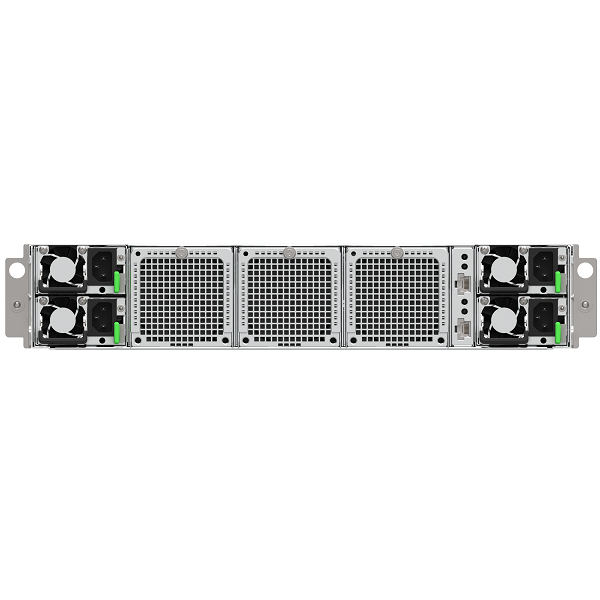

Rear:

•1 * CMC Reset Button

•2 * CMC Management Ports

Internal:

•1 * USB 3.2 Gen1 Type A

•1 * COM port header
