Compal Server

SX220-1N

CPU+GPU Integration -
- Support the NVIDIA® MGX™ architecture with the powerful NVIDIA GH200 Grace Hopper Superchip
- NVIDIA® NVLink®-C2C to deliver a CPU+GPU coherent memory model
Unified Memory Architecture -
- Enabling massive AI/ML workloads with up to 576 GB of LPDDR5X and 96 GB of HBM3
AI/ML Optimized –
- Targeted for HPC, large-scale LLMs, scientific computing, and simulation workloads.

NVIDIA GH200 Grace Hopper™ Superchip, Arm® Neoverse V2 cores, TDP up to 1000W

438mm (W) x 766mm (D) x 88mm (H)

17.24 in (W) x 30.16 in (D) x 3.46 in (H)

Up to 480GB LPDDR5x embedded
96GN HBM3 GPU memory

2 * E1.S SSD maximum

2 * PCIe Gen5 x16 FHFL

NVIDIA GH200 Grace Hopper™ Superchip

TPM 2.0 (optional)

2000W 1+1 Redundant, Platinum/Titanium PSU

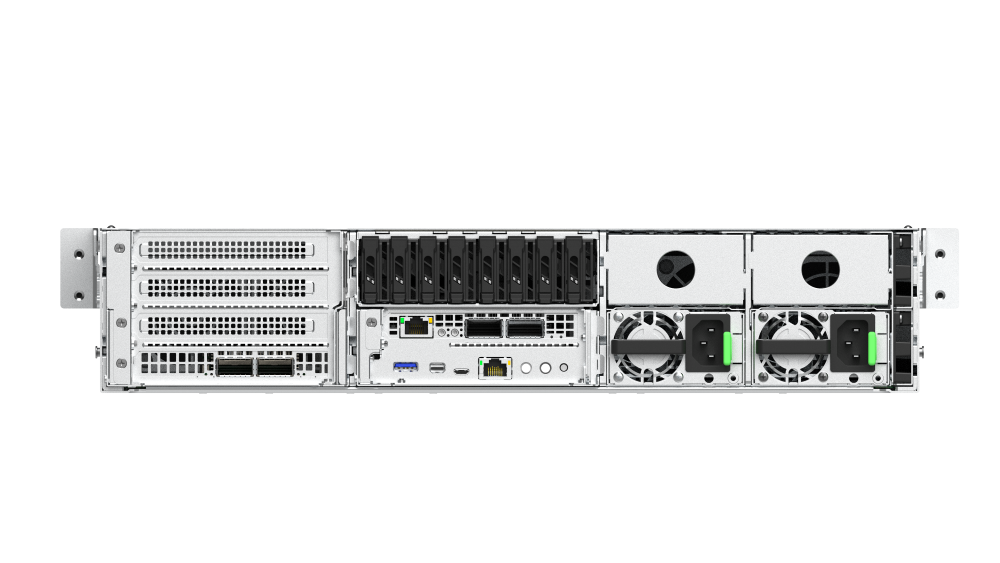

Rear:

- 1 * UID button
- 1 * Power button
- 1 * Reset button
- 1 * USB 3.2 Gen1 port
- 1 * 1GbE management port
- 1 * Mini display port
- 1 * Micro-USB

Internal:
- 1 * USB 3.2 Gen1 port
- 2 * 2280 M.2 (PCIe Gen5)
