Specifications
CPU
Dual 4th / 5th Gen Intel® Xeon® Scalable Processors
Dimensions
438mm (W) x 770mm (D) x 87mm (H)
17.24inch (W) x 30.31inch (D) x 3.43inch (H)
Memory
DIMM Type: DDR5 RDIMM up to 5600 MT/s
DIMM Count: 32 DIMM Slots

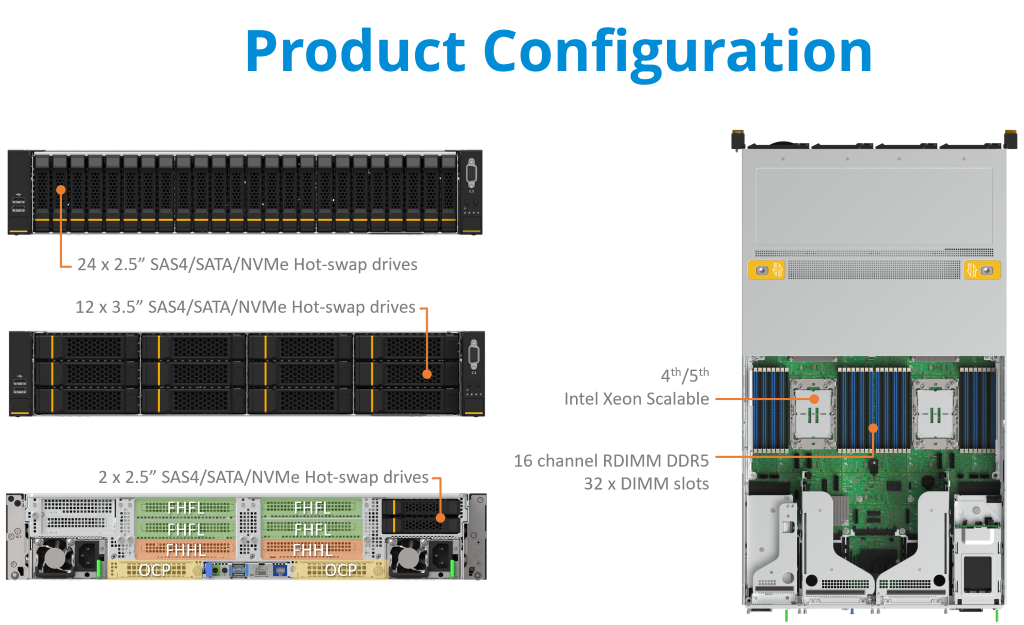

Storage
Front:

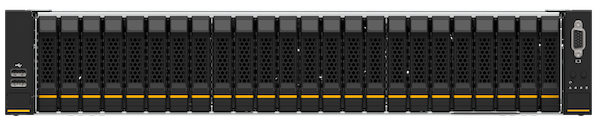

•24 * 2.5” SATA/SAS
•24 * 2.5” SATA/SAS4/NVMe U.2 PCIe Gen5

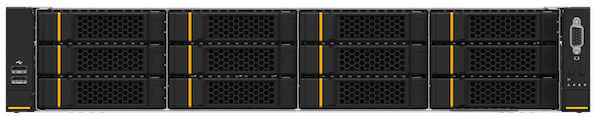

•12 * 3.5” SATA/SAS4/NVMe U.2 PCIe Gen5
•12 * 3.5” SATA/SAS
Rear:
•2 * 2.5” SATA/SAS
•2 * 2.5” SATA/SAS/NVMe U.2 PCIe Gen5
Internal:
•2 * M.2 (Type 2280)
For U.2 drives:
Intel® Virtual RAID on CPU (VROC) RAID 0, 1, 10, 5
PCIe Slot
General SKU:
•2 * FHFL PCIe Gen5 x16
•2 * FHFL PCIe Gen5 x8
•2 * FHHL PCIe Gen5 x8
•1 * HHHL PCIe Gen5 x8

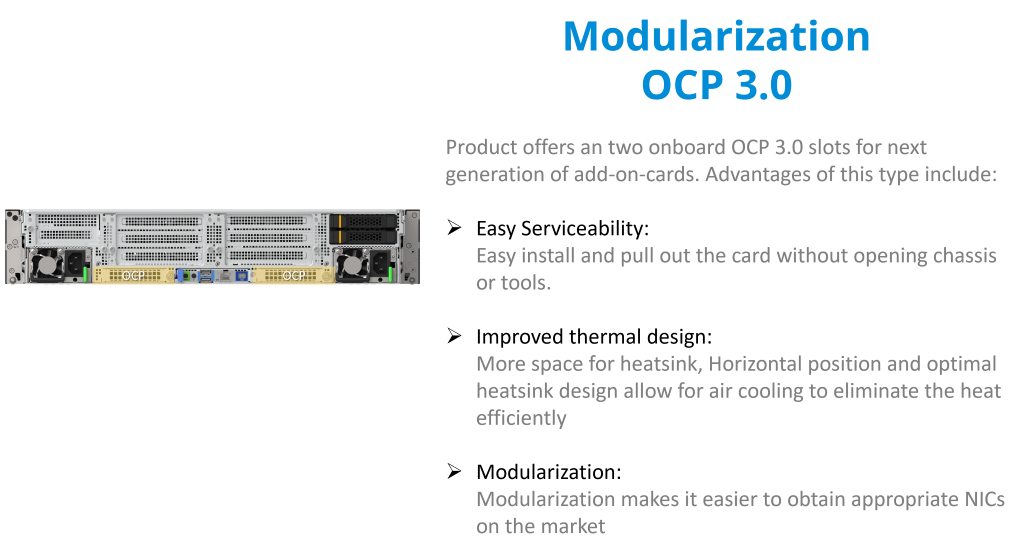

•1 * OCP 3.0 PCIe Gen5 x16
•1 * OCP 3.0 PCIe Gen5 x8
GPU SKU:
•2 * FHFL (Double Width) PCIe Gen5 x16
•2 * FHHL PCIe Gen5 x16
•1 * HHHL PCIe Gen5 x8
•1 * OCP 3.0 PCIe Gen5 x16
•1 * OCP 3.0 PCIe Gen5 x8
Security
TPM 2.0 (optional)
PFR 3.0 (optional)
Power Supply
1200W 1+1 Redundant, Platinum
1300W 1+1 Redundant, Titanium
1600W 1+1 Redundant, Platinum/Titanium
2400W 1+1 Redundant, Titanium
I/O Ports
Front:
•1 * VGA port
•1 * UID Button
•1 * Power / Reset Button
•1 * USB 3.2 Gen1 port
•1 * USB 2.0 port

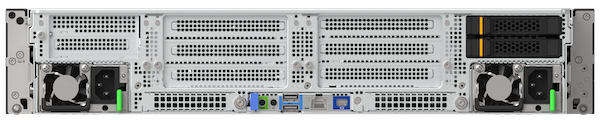

Rear:
•1 * Mini Display port
•1 * Power Button
•1 * UID Button
•2 * USB 3.2 Gen1 ports
•1 * 1GbE Management port
Internal:
•1 * USB 2.0 port Type-A
•8 * SATA ports on-board
