CPU
Dual AMD EPYC™ Milan 7003 Series Processor Family
Dimensions
438mm (W) x 735mm (D) x 87mm (H)
17.24inch (W) x 28.94inch (D) x 3.43inch (H)
Memory
DIMM Type: DDR4 RDIMM (up to 3200 MT/s)
DIMM Count: 32 DIMM Slots
Storage

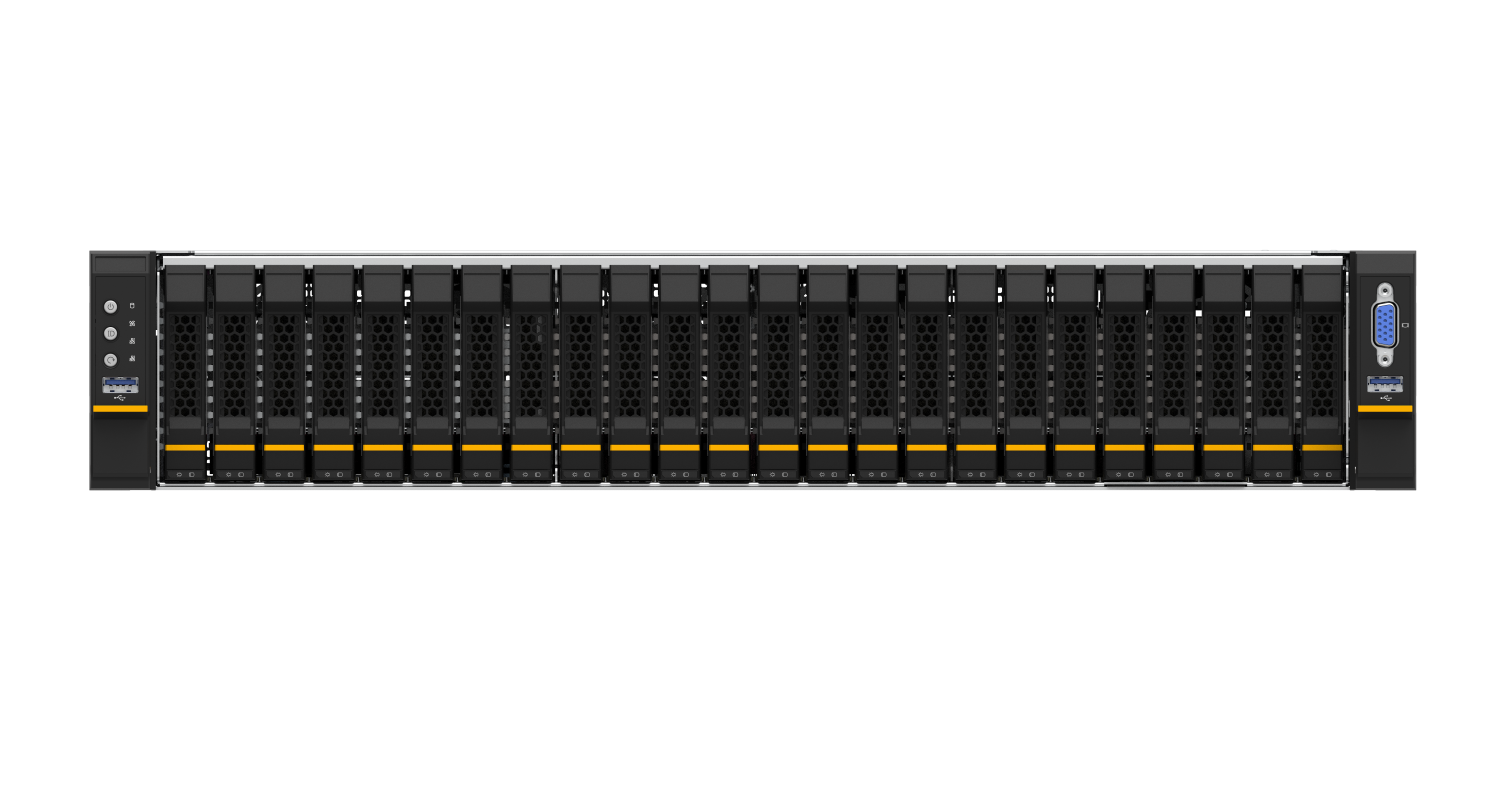

Front:
•24 * 2.5” SATA/SAS
•16 * 2.5” SATA/SAS + 8 * 2.5” NVMe U.2
•24 * 2.5” NVMe U.2
•4 * 3.5” SATA/SAS + 8 * 3.5” SATA/SAS/NVMe U.2

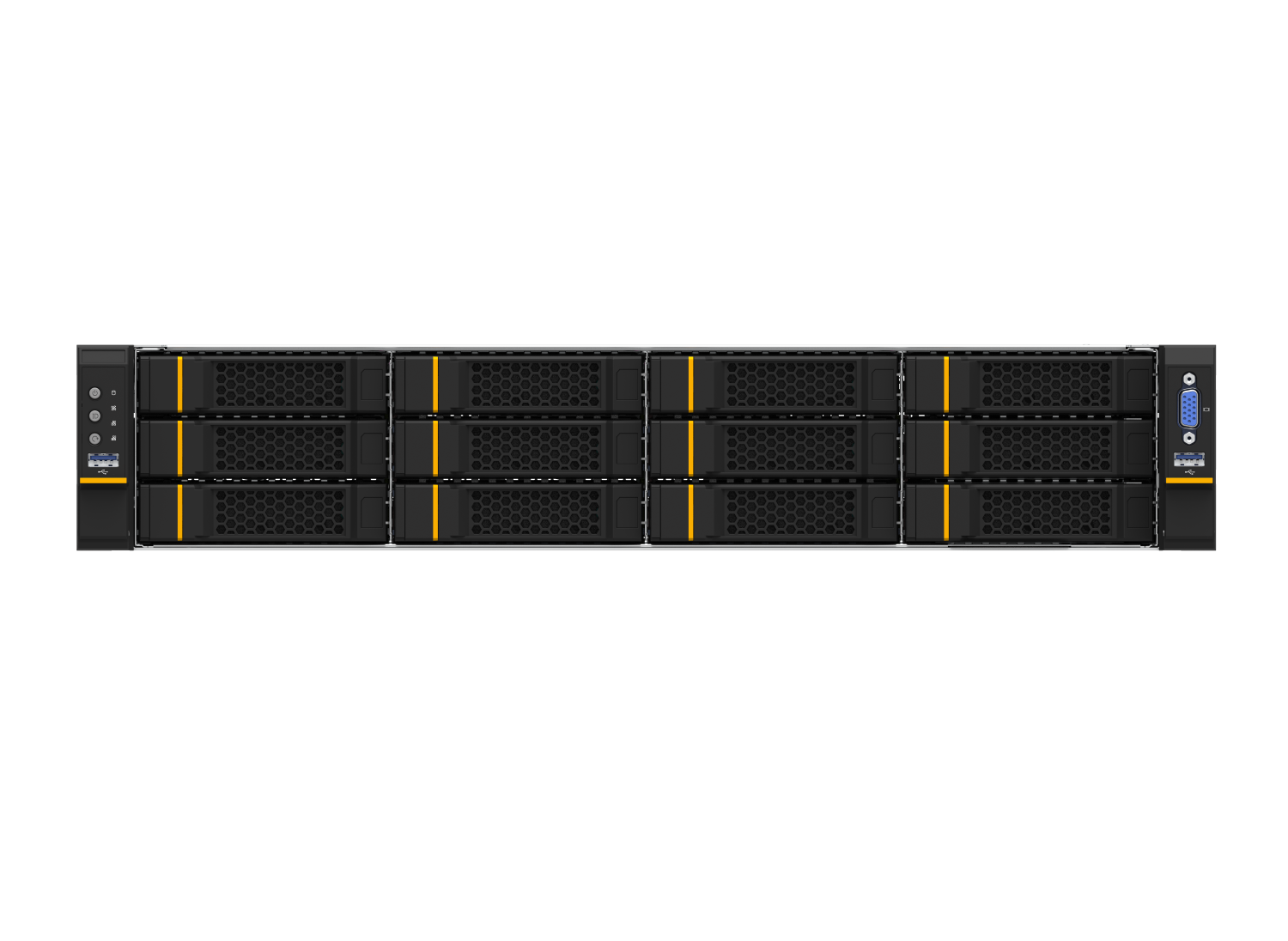

•12 * 3.5” SATA/SAS

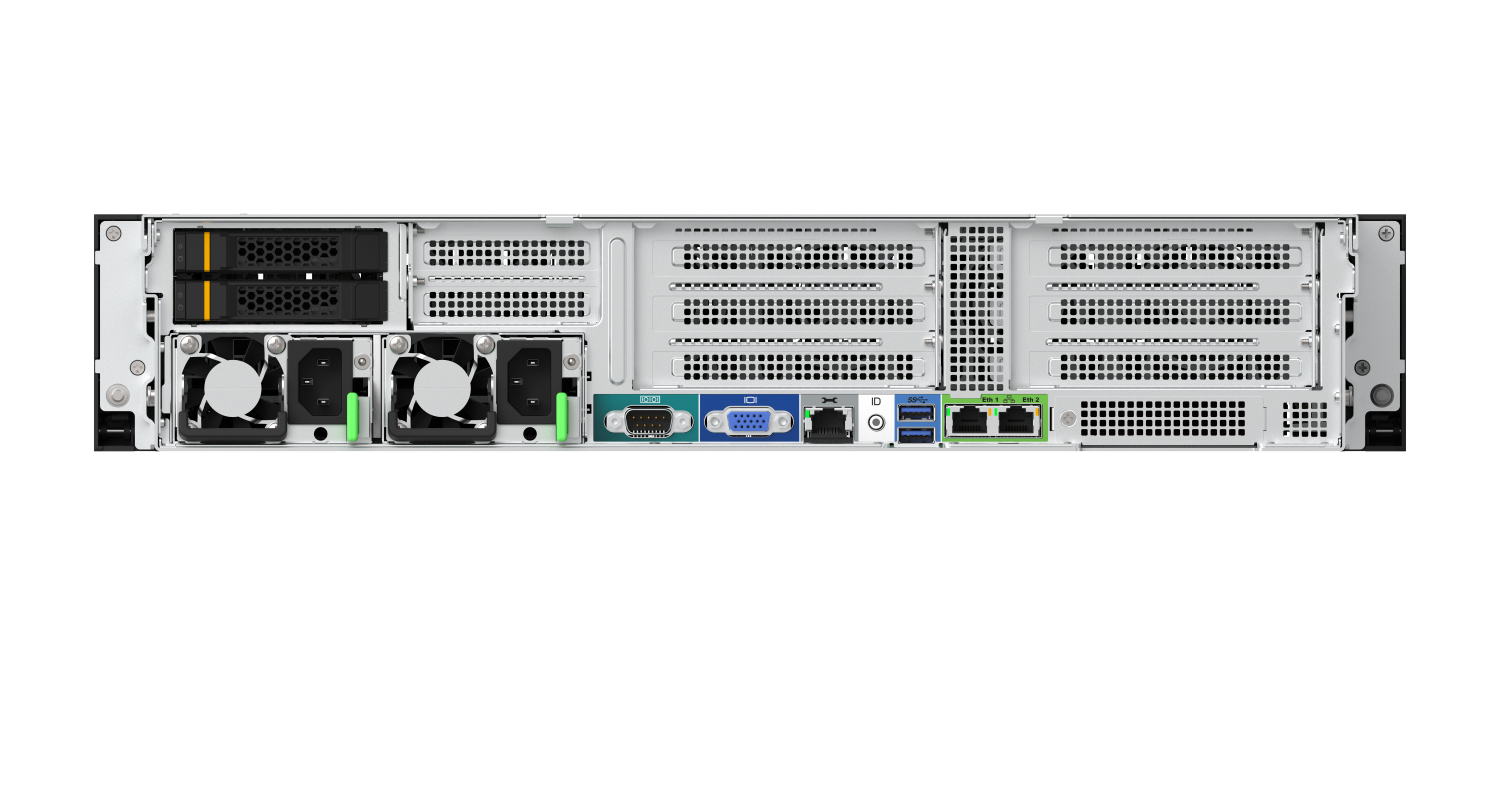

Rear:
•2 * 2.5” SATA/SAS
•4 * 3.5” SATA/SAS (Storage SKU only)
Internal:
2 * M.2 (Type 2280/22110)
PCIe Slot
General SKU:
•2 * FHFL PCIe Gen4 x16
•2 * FHFL PCIe Gen4 x8
•2 * FHHL PCIe Gen4 x8
•1 * HHHL PCIe Gen4 x8
•1 * OCP 2.0 (Connector A)
GPU SKU:
•2 * FHFL(DW) PCIe Gen x16
•2 * FHHL PCIe Gen4 x16
•1 * HHHL PCIe Gen4 x8
•1 * OCP 2.0 (Connector A)
Security
TPM 2.0 (optional)
Power Supply
•1200W 1+1 Redundant, Platinum
•1300W 1+1 Redundant, Titanium
•1600W 1+1 Redundant, Platinum/Titanium
