SR210-2

CPU

Dual 3rd Gen Intel^® Xeon^® Scalable Processors

Dimensions

438mm (W) x 735mm (D) x 87mm (H)

17.24inch (W) x 28.94inch (D) x 3.43inch (H)

Memory

DIMM Type: DDR4 RDIMM up to 3200 MT/s

DIMM Count: 32 DIMM Slots

Storage

Front:

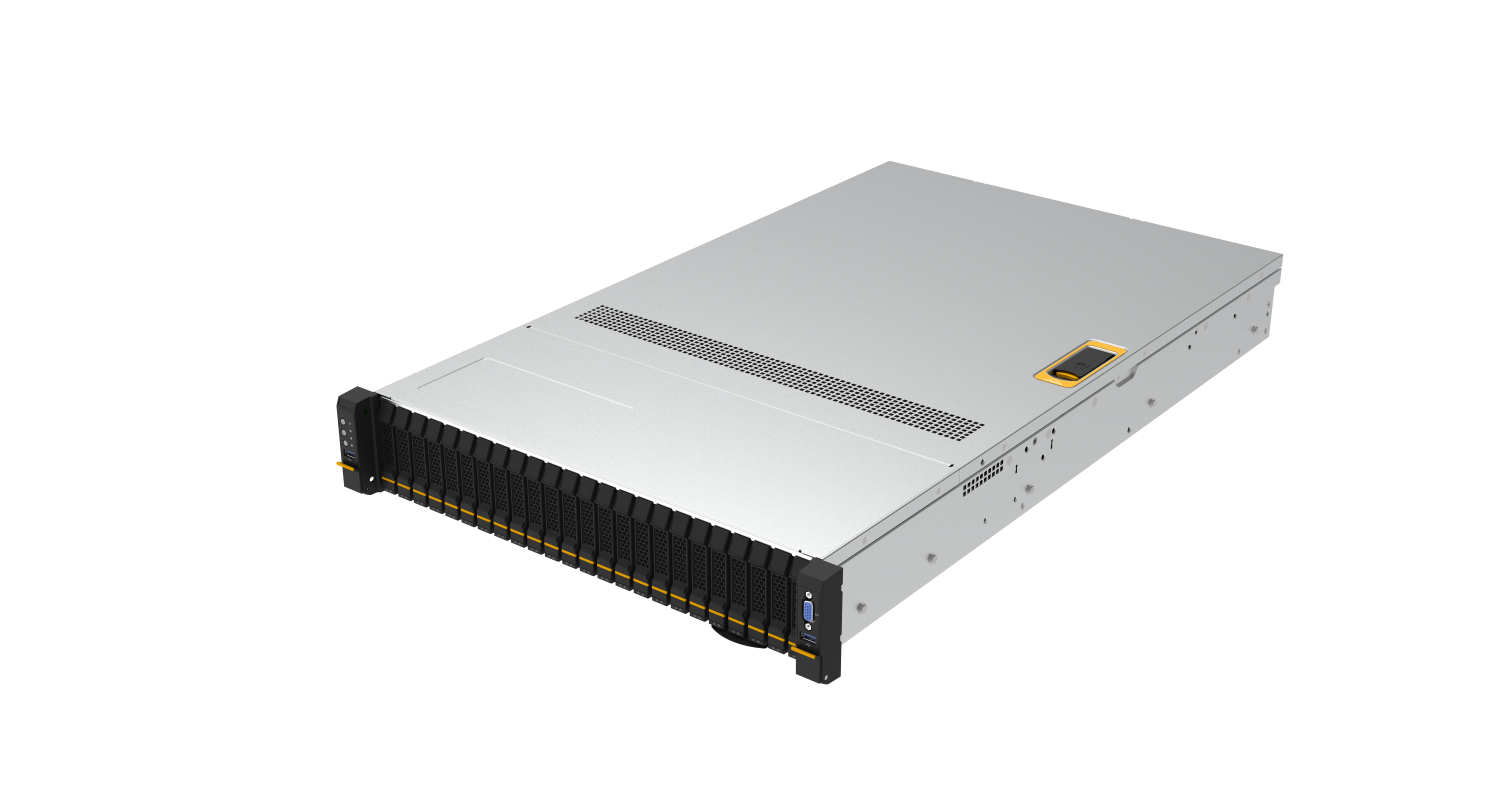

•24 * 2.5" SATA/SAS

•8 * 2.5" NVMe U.2 + 16 * 2.5" SATA/SAS

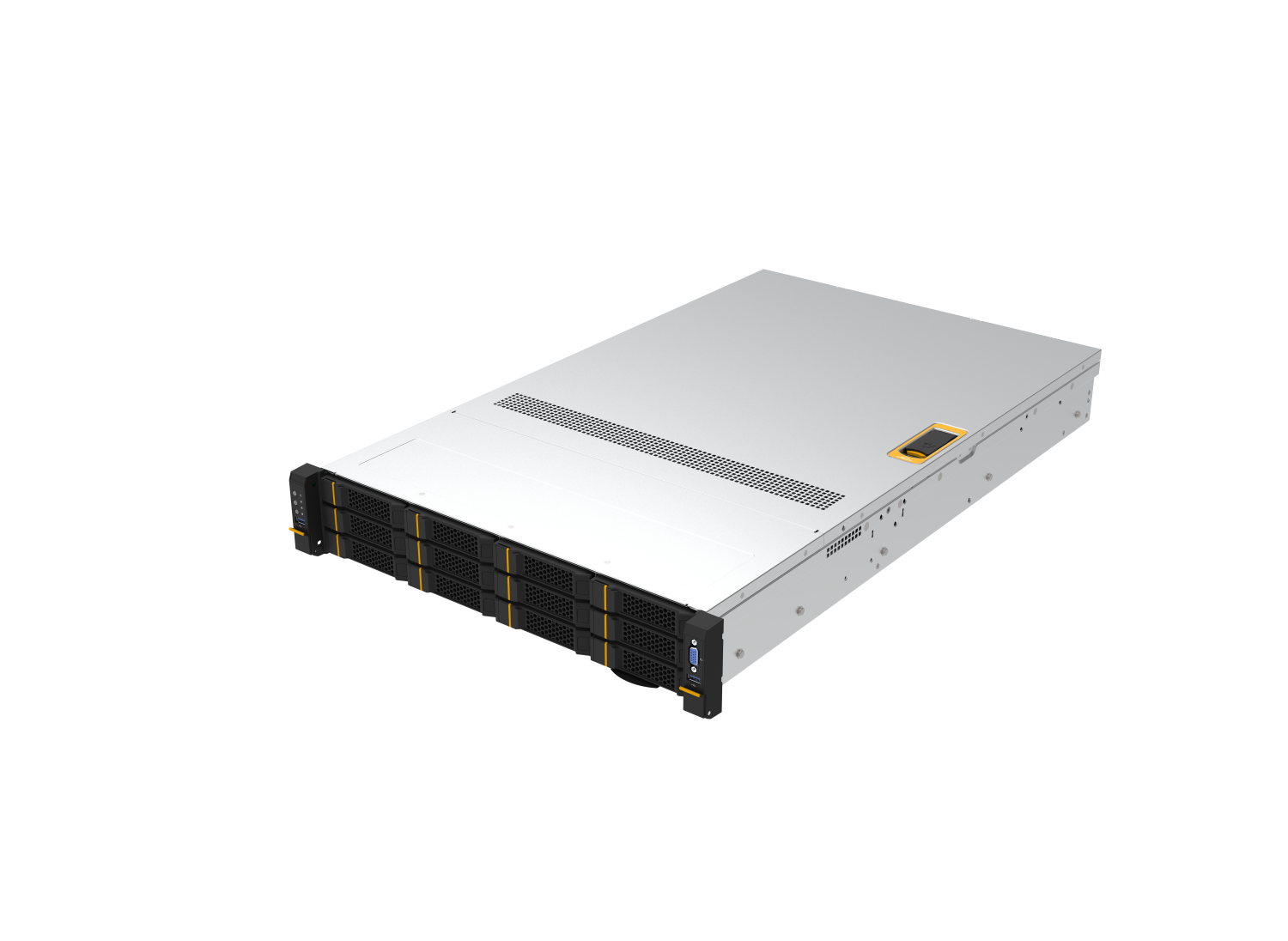

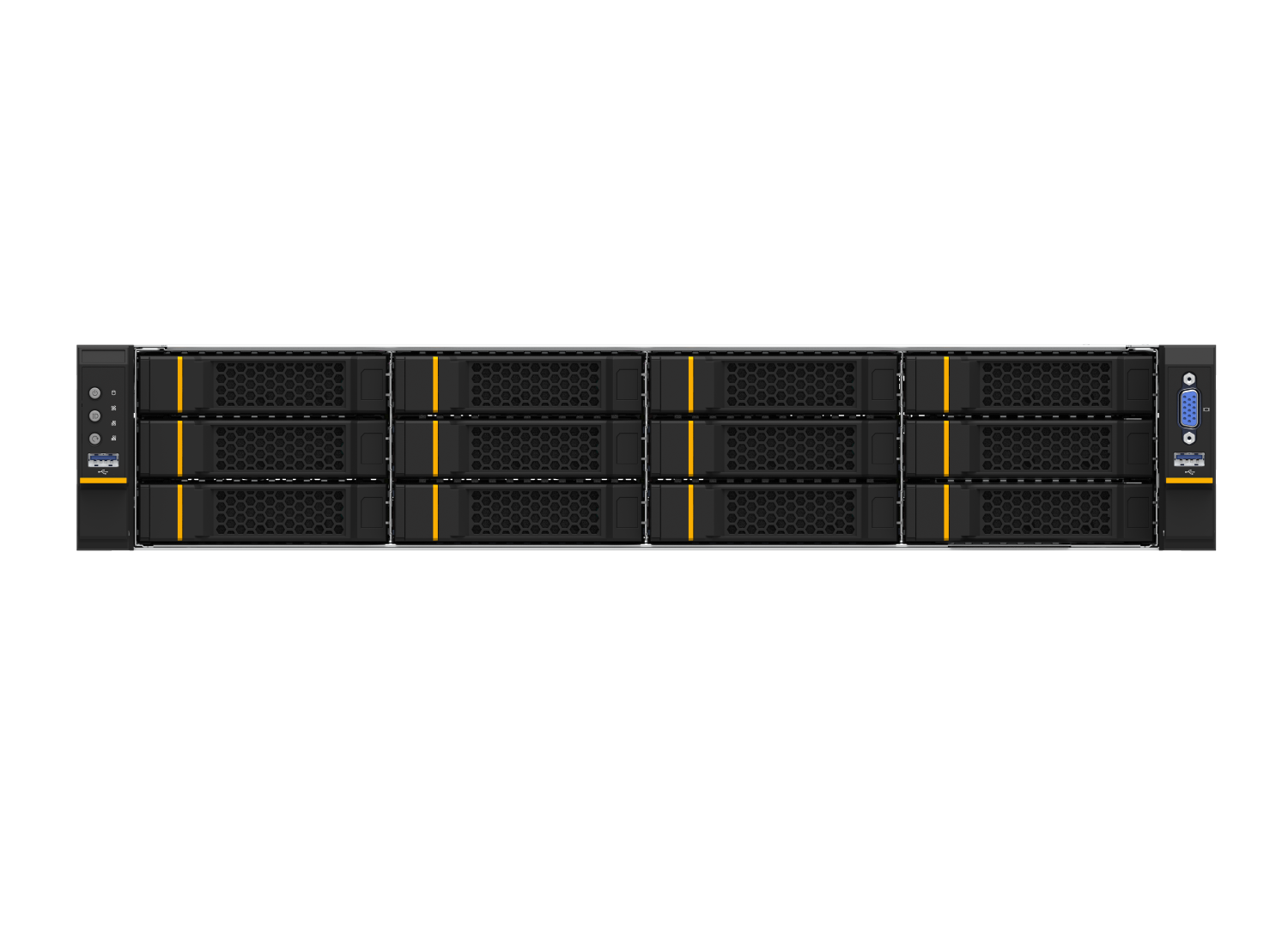

•4 * 3.5” SATA/SAS+ 8 * 3.5" SATA/SAS/NVMe U.2

Rear:

•2 * 2.5" SATA/SAS

•4 * 3.5" SATA/SAS (Storage SKU only)

Internal:

•2 * M.2 (Type 2280/22110)

For U.2 drives:

Intel® Virtual RAID on CPU (VROC) RAID 0, 1, 10, 5

PCIe Slot

General SKU:

•2 * FHFL PCIe Gen4 x16

•2 * FHFL PCIe Gen4 x8

•2 * FHHL PCIe Gen4 x8

•1 * HHHL PCIe Gen4 x8

•1 * OCP 2.0 (Connector A)

GPU SKU:

•2 * FHFL(DW) PCIe Gen4 x16

•2 * FHHL PCIe Gen4 x16

•1 * HHHL PCIe Gen4 x8

•1 * OCP 2.0 (Connector A)

Storage SKU (16 * 3.5" HDD):

•2 * HHHL PCIe Gen4 x16

•1 * OCP 2.0 (Connector A)

Security

TPM 2.0 (optional)

Power Supply

800W 1+1 Redundant, Platinum

1200W 1+1 Redundant, Platinum

1600W 1+1 Redundant, Platinum

I/O Ports

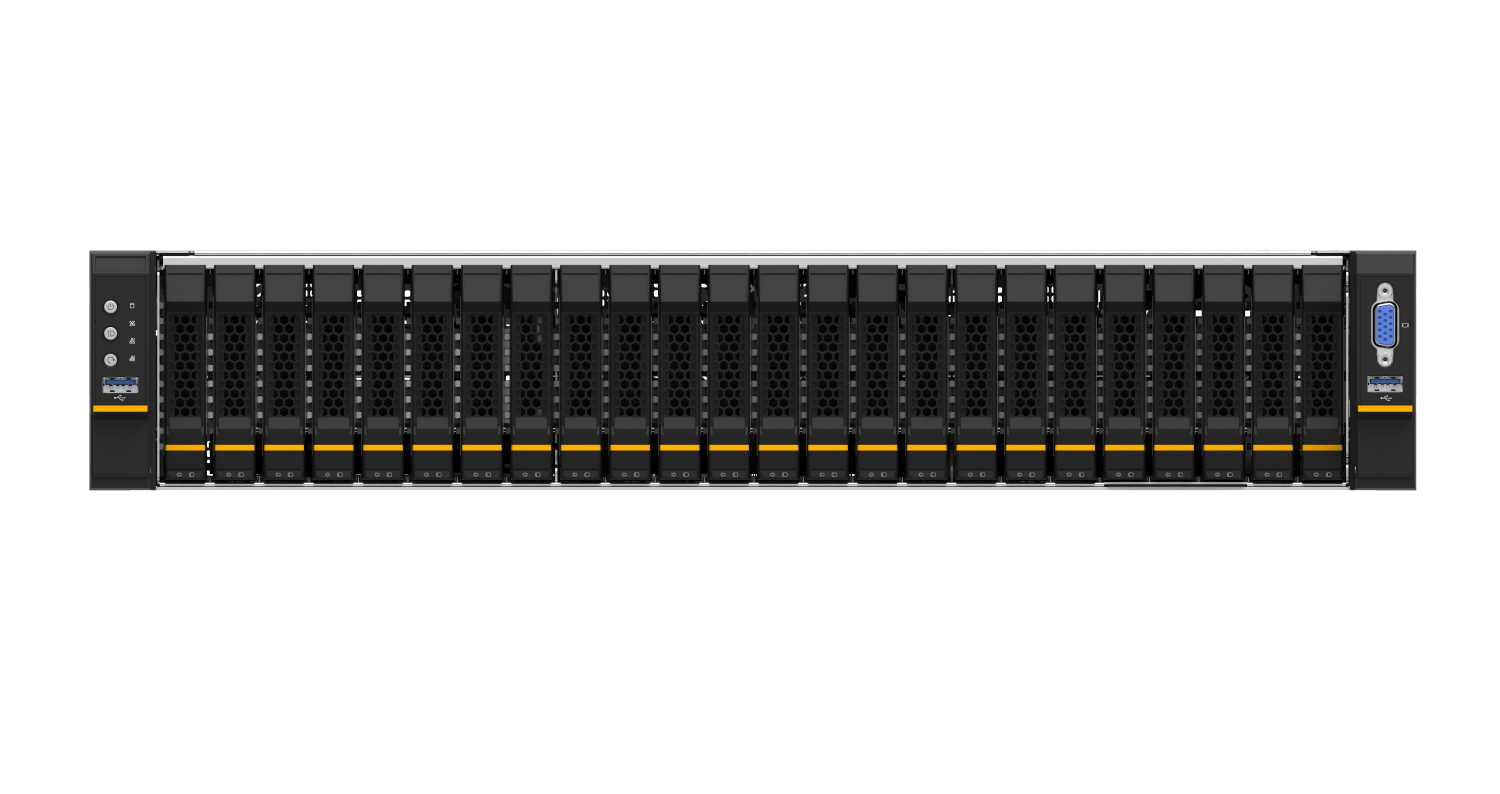

Front:

•1 * VGA port

•1 * UID Button

•1 * Power Button

•1 * Reset Button

•2 * USB 3.2 Gen1 port

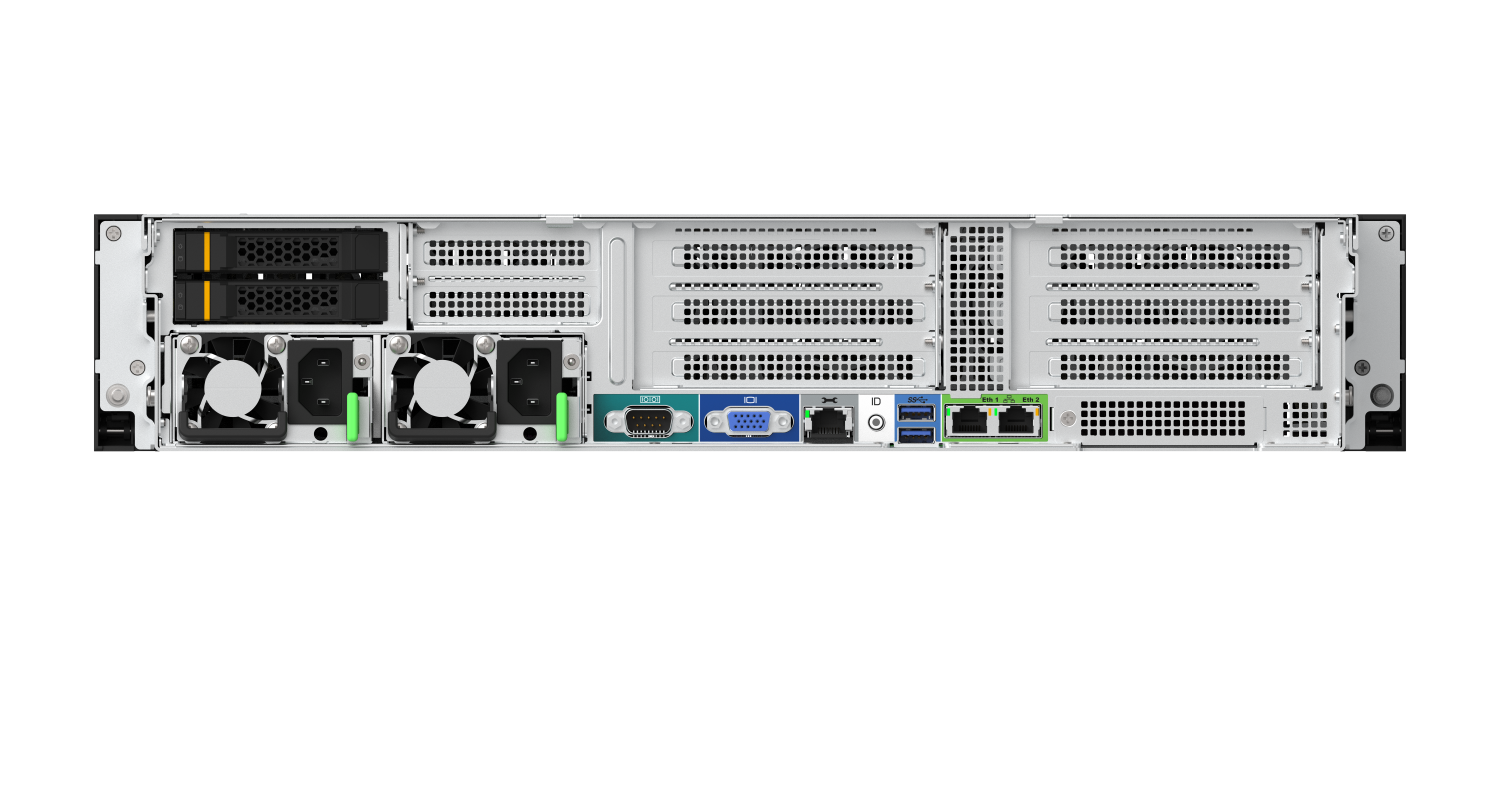

Rear:

•1 * VGA port

•1 * UID Button

•2 * USB 3.2 Gen1 ports

•1 * Serial port

•2 * 1GbE

•1 * 1GbE Management port

Internal:

•1 * USB 3.2 Gen1 port Type-A
