Specifications
CPU
Dual 6th Gen Intel® Xeon® Scalable Processors
Dimensions
438.5mm (W) x 770mm (D) x 43mm (H)
17.26inch (W) x 30.31inch (D) x 1.69inch (H)
Memory
DIMM Type: DDR5 RDIMM up to 6400 MT/s
DIMM Slots: 32 DIMM Slots
Storage

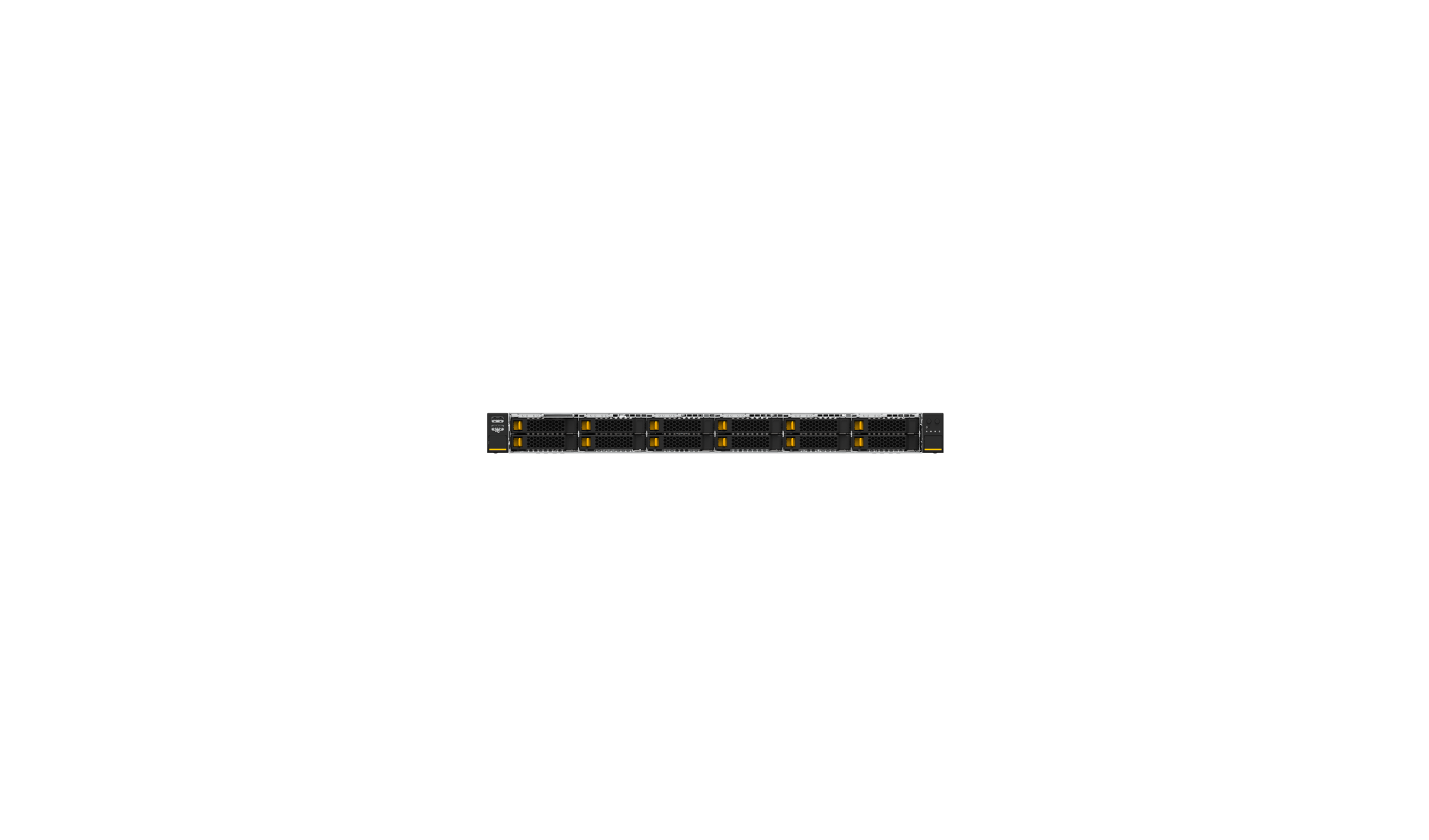

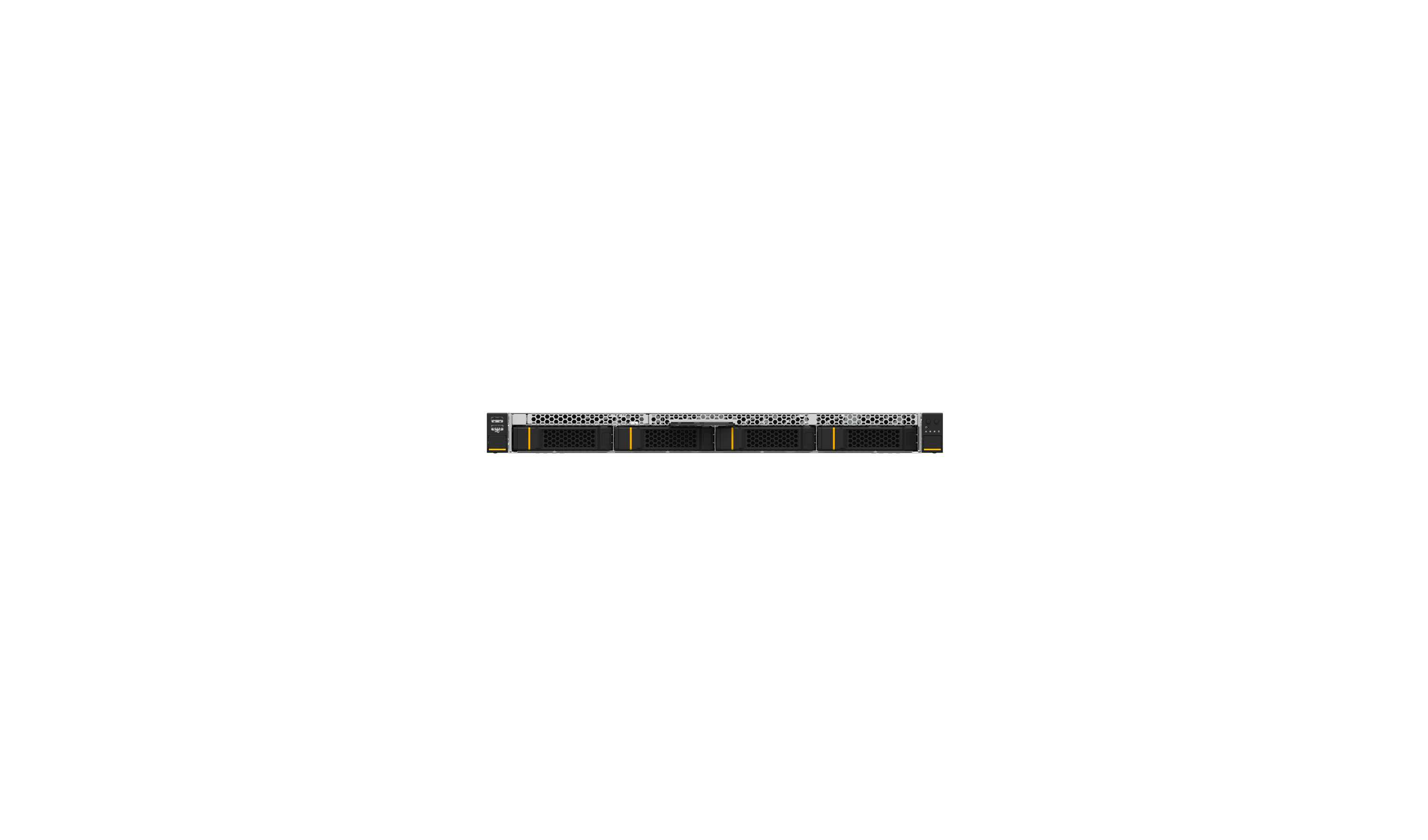

Front:
• 12 * 2.5" SATA/SAS4/NVMe U.2 PCIe Gen5
• 4 * 3.5" SATA/SAS4/NVMe U.2 PCIe Gen5
Internal:
•2 * M.2 (PCIe Gen5 Type 2280)
PCIe Slot
SKU 1:
•2 * Gen5 x16 FHHL
Other:
•1 * PCIe Gen5 x16 OCP 3.0
•1 * PCIe Gen5 x8 OCP 3.0
SKU 2:
• 2 * Gen5 x16 HHHL
• 1 * Gen5 x8 HHHL
Other:
• 1 * PCIe Gen5 x16 OCP 3.0
• 1 * PCIe Gen5 x8 OCP 3.0
Security
TPM 2.0 (optional)
PFR 3.0 (optional)
Power Supply
• 1200W 1+1 Redundant, Platinum PSU
• 1300W 1+1 Redundant, Titanium PSU
• 1600W 1+1 Redundant, Platinum/Titanium
I/O Ports
Front:
• 1 * UID Button
• 1 * Power / Reset Button
• 1 * USB 3.2 Gen1 port
• 1 * USB 2.0 port

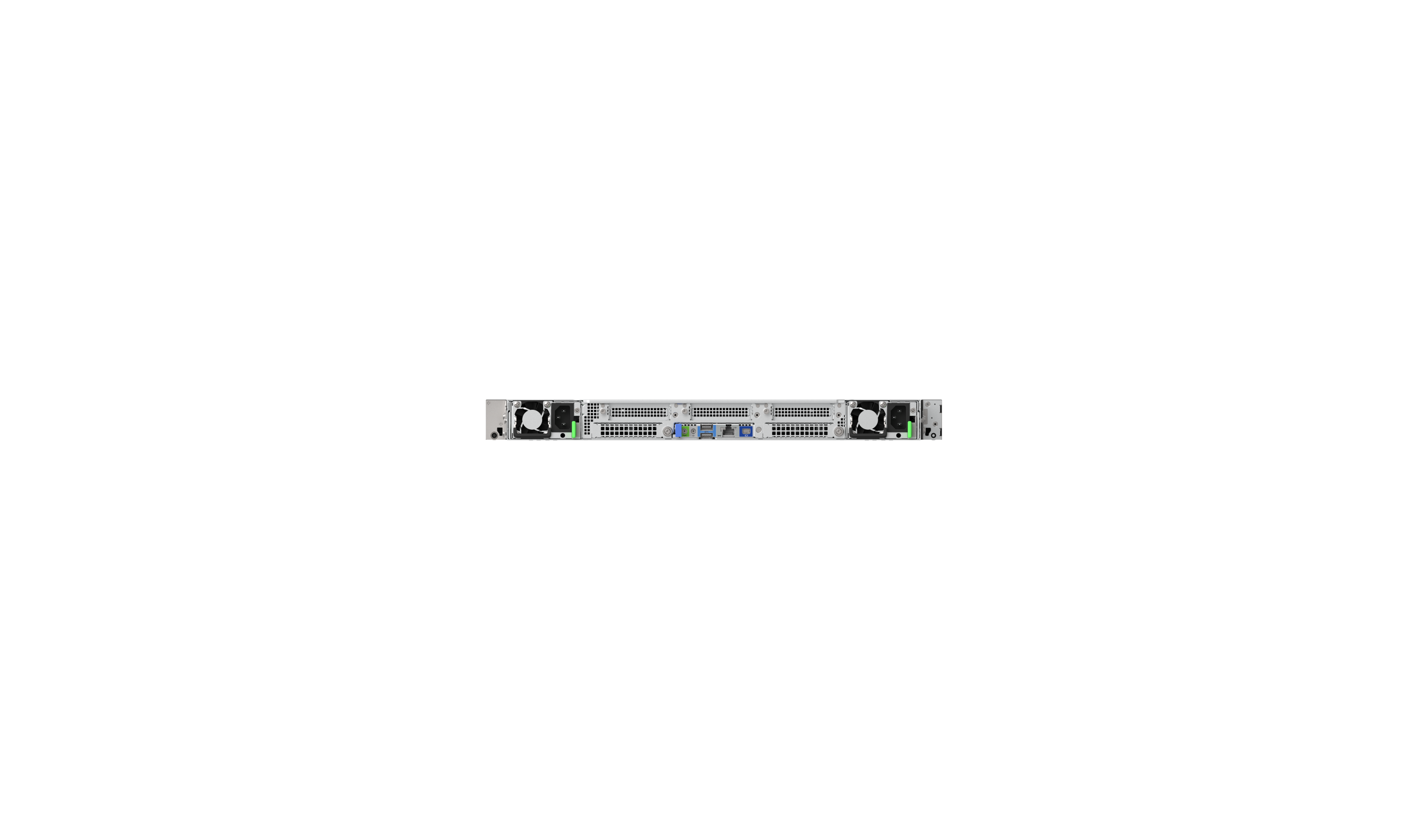

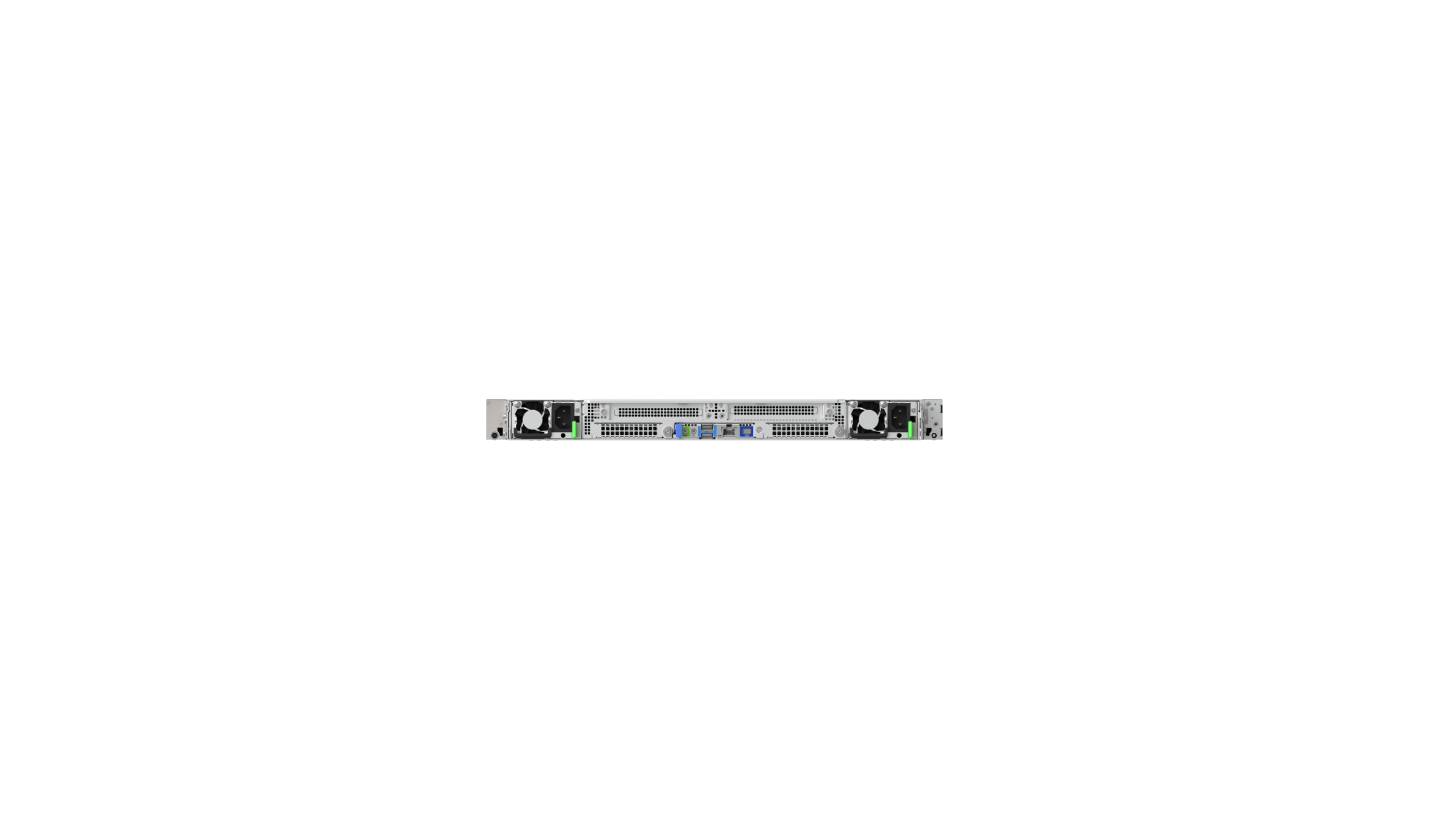

Rear:
• 1 * Mini Display port
• 1 * Power Button
• 1 * UID Button
• 2 * USB 3.2 Gen1 ports
• 1 * 1GbE Management port
