Specifications
CPU
Dual AMD EPYC™ 9005 Series Processor Family
Dimensions
438mm (W) ) x 43mm (H) x 770mm (D)
17.24inch (W) x 1.69inch (H) x 30.31inch (D)
Memory
Memory Type: Up to 6400 MT/s DDR5 RDIMM
DIMM Slots: 24 DIMM Slots
Storage
Front:
• 12 * 2.5" SATA/SAS4/NVMe U.2 PCIe Gen5
• 4 * 3.5" SATA/SAS4/NVMe U.2 PCIe Gen5
Internal:
2 * M.2 (Type 2280)
PCIe Slot
SKU 1:
• 2 * FHHL Gen5 x16
Other:
• 1 * OCP 3.0 PCIe Gen5 x16
• 1 * OCP 3.0 PCIe Gen5 x8
SKU 2:
• 2 * HHHL Gen5 x16
• 1 * HHHL Gen5 x8
Other:
• 1 * OCP 3.0 PCIe Gen5 x16
• 1 * OCP 3.0 PCIe Gen5 x8
Security
TPM 2.0 (optional)
NIST SP 800-193 (optional)
Power Supply
• 1200W 1+1 Redundant, Platinum
• 1300W 1+1 Redundant, Titanium
• 1600W 1+1 Redundant, Platinum/Titanium
I/O Ports
Front:
• 1 * UID button
• 1 * Power / Reset button
• 1 * USB 2.0 port
• 1 * USB 3.2 Gen1 port

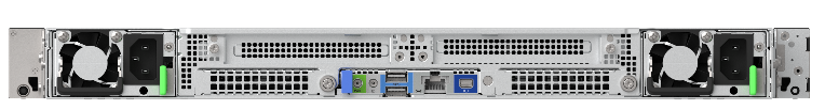

Rear:
• 1 * Mini display port
• 1 * Power button
• 1 * UID button
• 2 * USB 3.2 Gen1 ports
• 1 * 1GbE management port
Internal:
• 1 * USB 3.2 Gen1 port Type-A
