Specifications
CPU
Dual 4th / 5th Gen Intel® Xeon® Scalable Processors
Dimensions
438.5mm (W) x 770mm (D) x 43mm (H)
17.26inch (W) x 30.31inch (D) x 1.69inch (H)
Memory
DIMM Type: DDR5 RDIMM up to 5600 MT/s
DIMM Count: 32 DIMM Slots
Storage

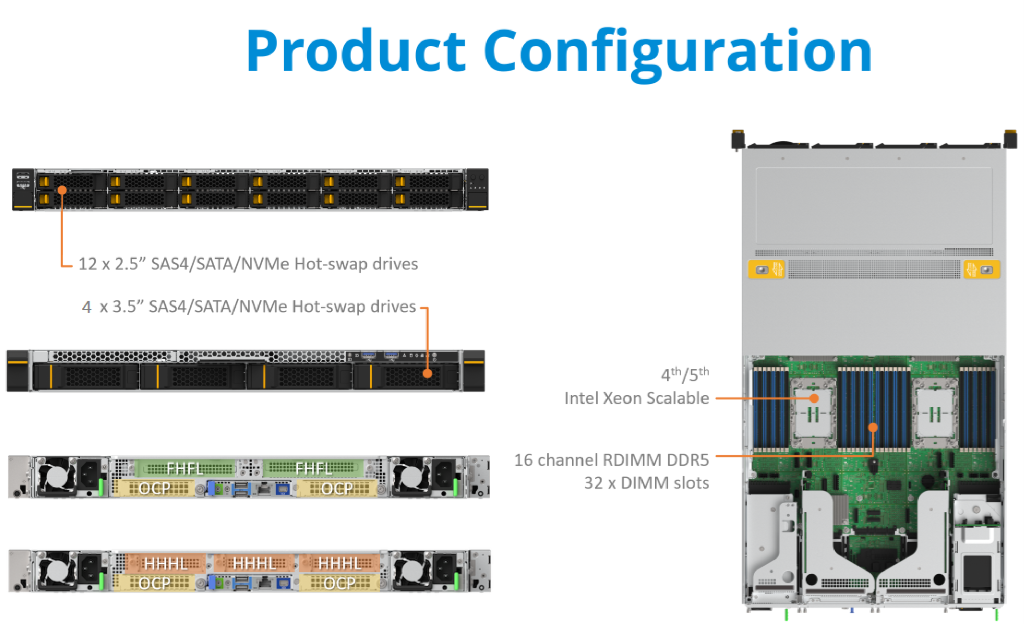

Front:
• 12 * 2.5" SATA/SAS4/NVMe U.2 PCIe Gen5
• 4 * 3.5" SATA/SAS4/NVMe U.2 PCIe Gen5
Internal:
•2 * M.2 (Type 2280)
For U.2 drives:
Intel® Virtual RAID on CPU (VROC) RAID 0, 1, 10, 5
PCIe Slot
SKU 1:
•2 * FHHL Gen5 x16

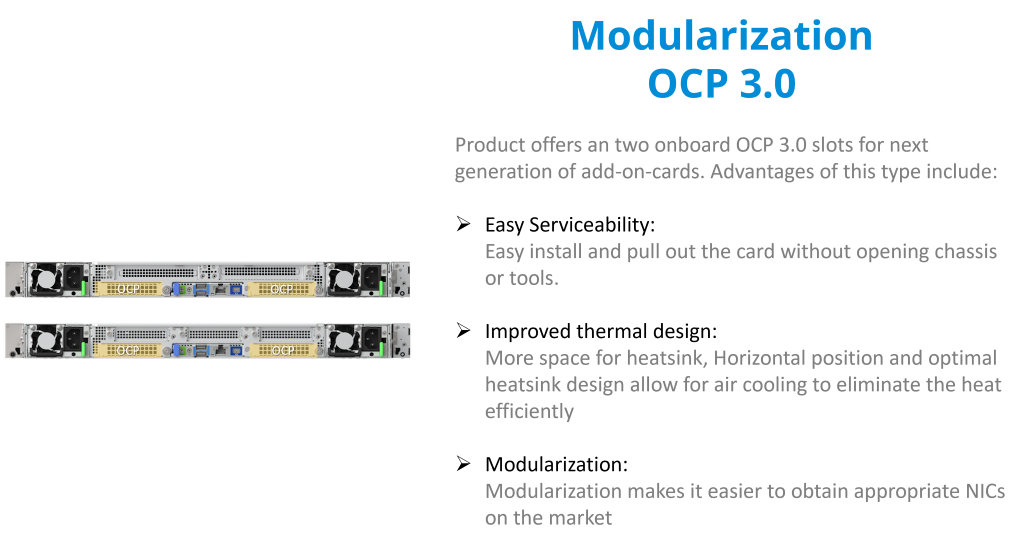

Other:
•1 * OCP 3.0 PCIe Gen5 x16
•1 * OCP 3.0 PCIe Gen5 x8
SKU 2:
• 2 * HHHL Gen5 x16
• 1 * HHHL Gen5 x8
Other:
• 1 * OCP 3.0 PCIe Gen5 x16
• 1 * OCP 3.0 PCIe Gen5 x8
Security
TPM 2.0 (optional)
PFR 3.0 (optional)
Power Supply
• 1200W 1+1 Redundant, Platinum
• 1300W 1+1 Redundant, Titanium
• 1600W 1+1 Redundant, Platinum/Titanium
I/O Ports
Front:
• 1 * UID Button
• 1 * Power / Reset Button
• 1 * USB 3.2 Gen1 port
• 1 * USB 2.0 port
Rear:
• 1 * Mini Display port
• 1 * Power Button
• 1 * UID Button
• 2 * USB 3.2 Gen1 ports

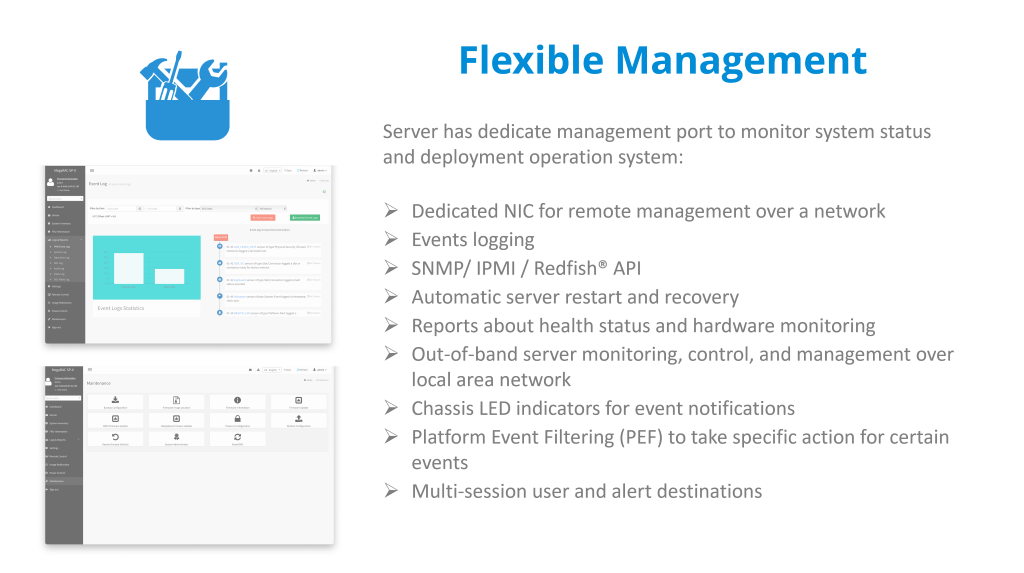

• 1 * 1GbE Management port
Internal:
• 1 * USB 3.1 port Type-A
• 8 * SATA ports on-board
