SR110-2

CPU

Dual 3rd Gen Intel^® Xeon^® Scalable Processors

Dimensions

438mm (W) x 735mm (D) x 43mm (H)

17.24inch (W) x 28.94inch (D) x 1.69inch (H)

Memory

DIMM Type: DDR4 RDIMM up to 3200 MT/s

DIMM Count: 32 DIMM Slots

Storage

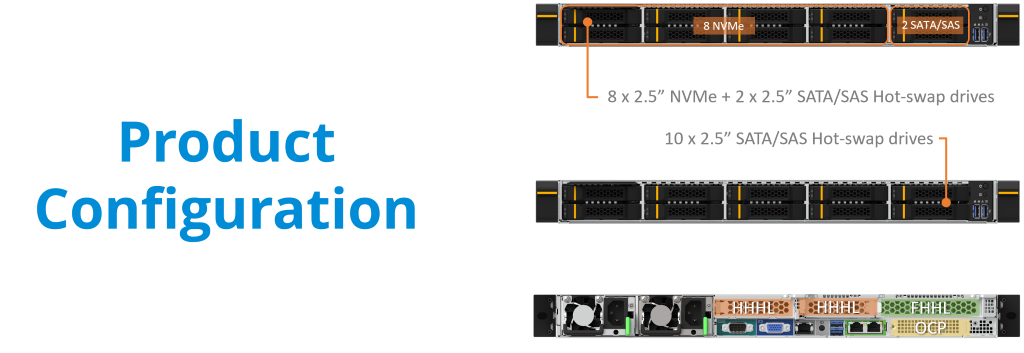

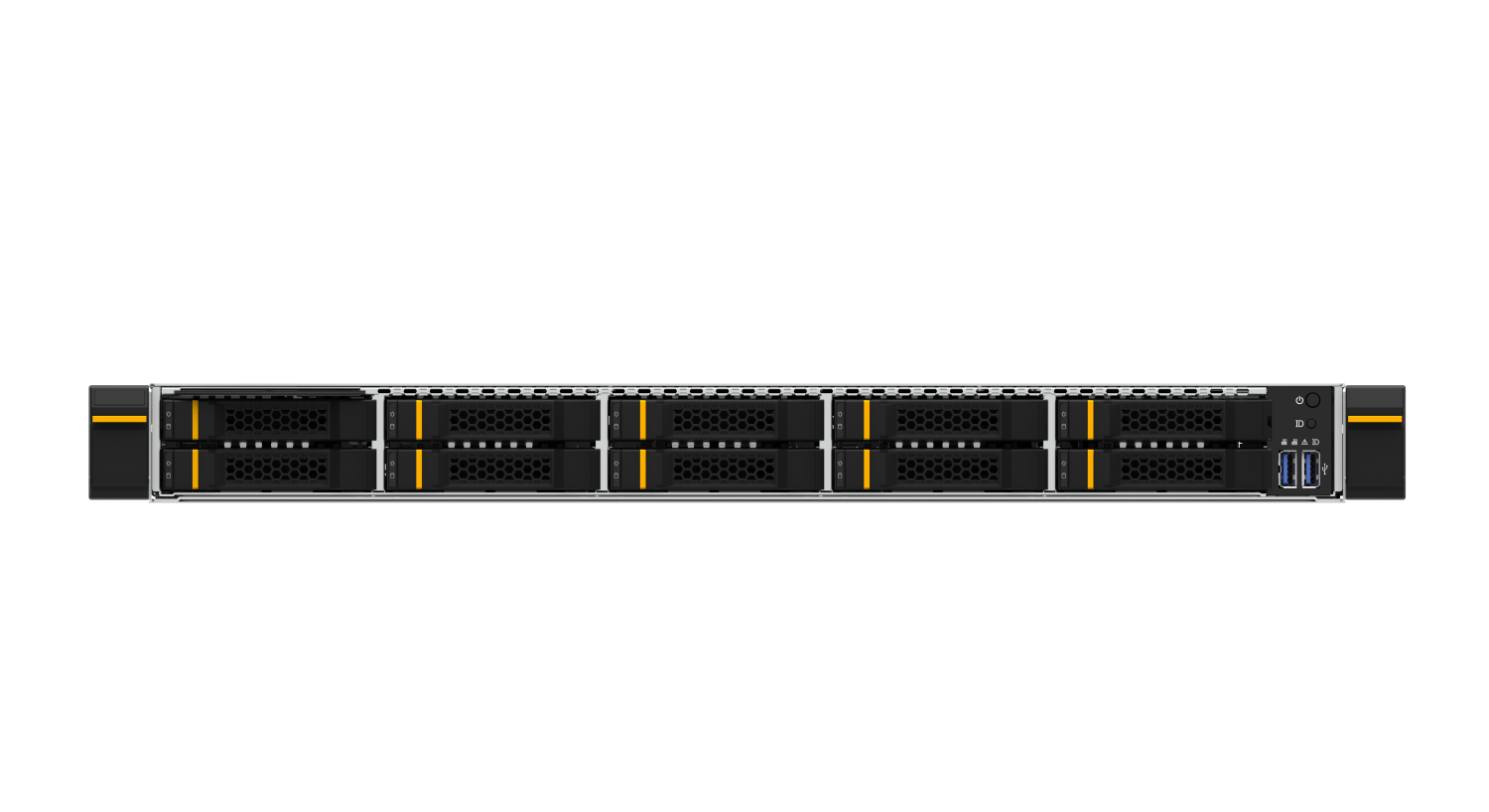

Front:

• 10 * 2.5" SATA/SAS

• 2 * 2.5" SATA/SAS + 8 * 2.5" SATA/SAS/NVMe U.2

Internal:

• 2 * M.2 (Type 2280/22110)

For U.2 drives:

Intel® Virtual RAID on CPU (VROC) RAID 0, 1, 10, 5

PCIe Slot

• 1 * FHHL Gen4 x16

• 1 * HHHL Gen4 x16

• 1 * HHHL Gen4 x8

• 1 * OCP 2.0  (Connector A)

Security

TPM 2.0 (optional)

Power Supply

• 800W 1+1 Redundant, Platinum

• 1200W 1+1 Redundant, Platinum

I/O Ports

Front:

• 1 * UID Button

• 1 * Power Button

• 2 * USB 3.2 Gen1 port

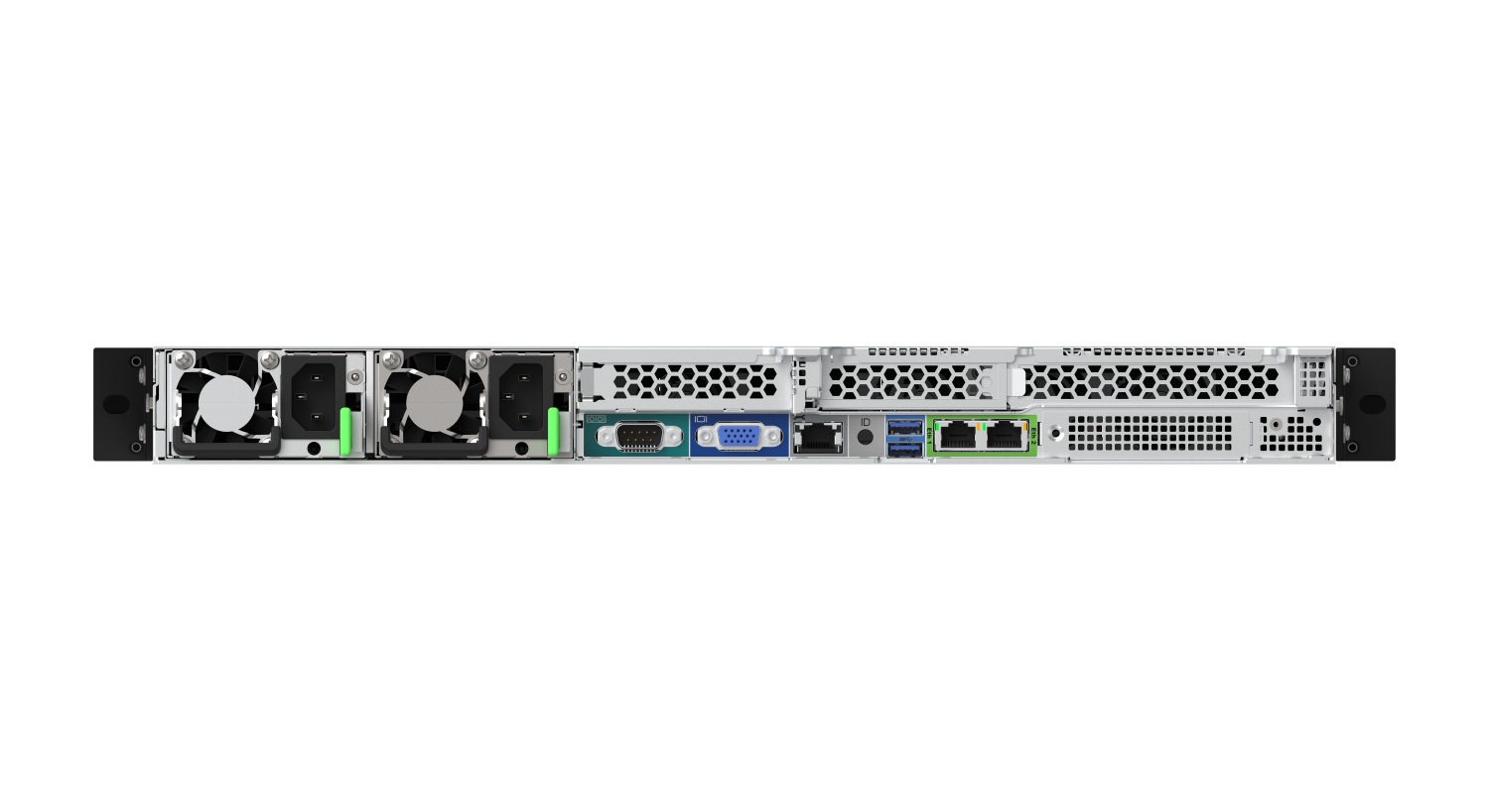

Rear:

• 1 * VGA port

• 1 * UID Button

• 2 * USB 3.2 Gen1 ports

• 1 * Serial port

• 2 * 1GbE

• 1 * 1GbE Management port

Internal:

• 1 * USB 3.2 Gen1 port Type-A
