Specifications
CPU (Node)
Dual AMD EPYC™ Turin 9005 series processor Family
Dimensions
442mm (W) x 850mm (D) x 87.3mm (H)
17.40 in (W) x 33.46 in (D) x 3.44 in (H)
Memory (Node)
Memory Type: Up to 6400 MT/s DDR5 RDIMM
DIMM Slot : 24 DIMM Slots
Storage
Front:
(Node)
• Up to 4 * 2.5" SATA/SAS/NVMe U.2 (7mm)
• Up to 2 * 2.5" SATA/SAS/NVMe U.2 (15mm)
Internal:
(Node)
- 2 * 2280 M.2 (PCIe Gen5)
PCIe Slot (Node)
(Node)
SKU (2 Drive Cages)
•1 * PCIe Gen5 x16 OCP 3.0
• 1 * HHHL PCIe Gen5 x16
SKU (1 Drive Cage)
• 1 * PCIe Gen5 x16 OCP 3.0
•2 * PCIe Gen5 x16 HHHL
Security
(Node)
On Board TPM
NIST SP 800-193 (optional)
Power Supply
•1600W/2000W 3+1 Redundant, Platinum/Titanium PSU
BMC
ASPEED AST2600 (BMC)
ASPEED AST2620 (CMC)
Chassis Management Controller (CMC) is an embedded system management hardware and software solution to manage multiple servers
I/O Ports (Node)

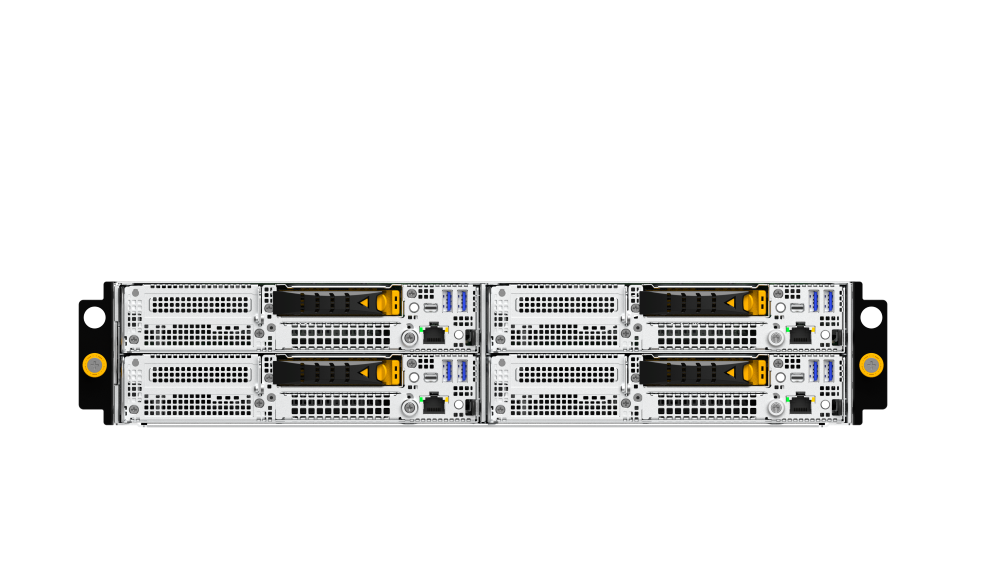

Front:
(Node)
- 1 * UID button
- 1 * Power button
- 1 * Mini display port
- 2 * USB 3.2 Gen1 ports
- 1 * 1GbE management port
Rear:
(Chassis)
- 1 * CMC reset button
- 2 * CMC managment ports
