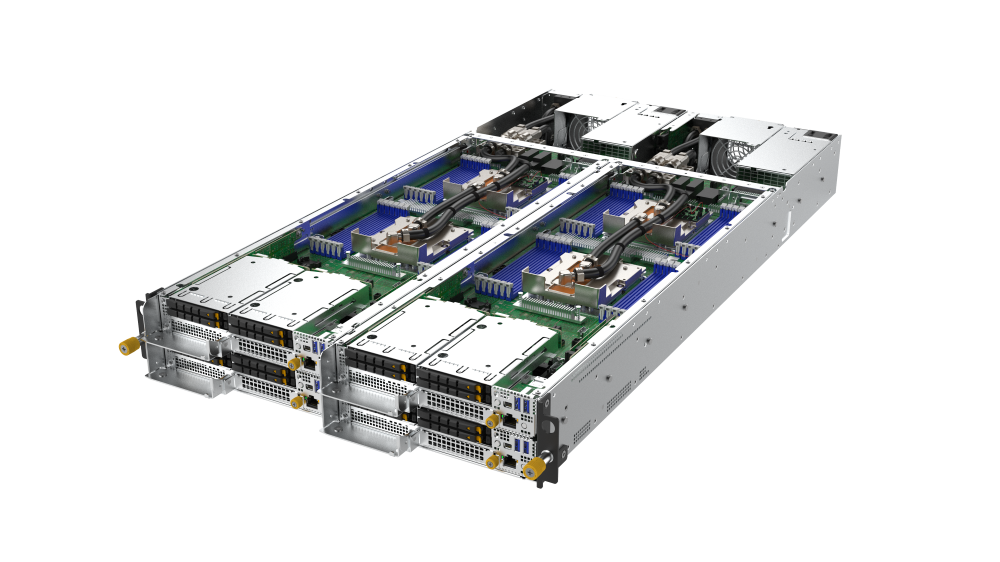

SD221-8A-L1

Processor

Dual AMD EPYC™ 9004/9005 platform

Dimensions

442mm (W) x 87.3mm (H) x 850mm (D)

17.40inch (W) x 3.44inch (H) x 33.46inch (D)

Memory (Node)

Memory Type: DDR5 RDIMM (up to 4800 MT/s)

DIMM Slot: 24 DIMM Slots

Storage

Front:

up to 4 * 2.5” SATA/NVMe U.2 (7mm)

Internal:

2 * 2280 M.2

PCIe Slot (Node)

SSD x4:

1 * OCP 3.0

1 * PCIe Gen5 x16 HHHL

SSD x2:

1 * OCP 3.0

2 * PCIe Gen5 x16 HHHL

BMC / CMC

ASPEED AST2600

ASPEED AST2620

Security (Node)

TPM 2.0 (optional)

Power Supply

2000W 2+1, 2+2, 3+1 Redundant, Platinum/Titanium

I/O Ports (Node)

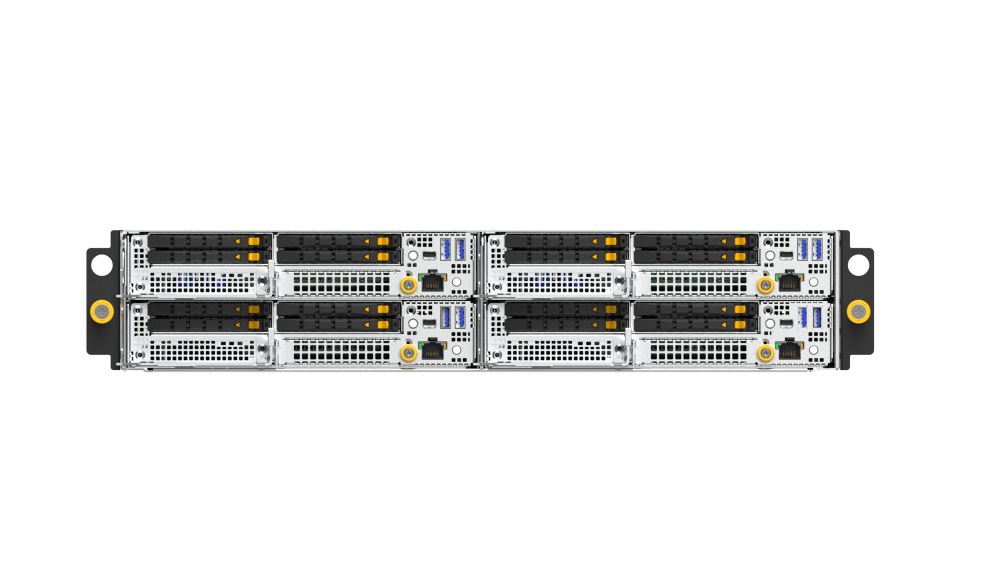

Front:

•1 * UID button

•1 * Power button

•1 * Mini display port

•2 * USB 3.2 Gen1 ports

•1 * 1GbE management port

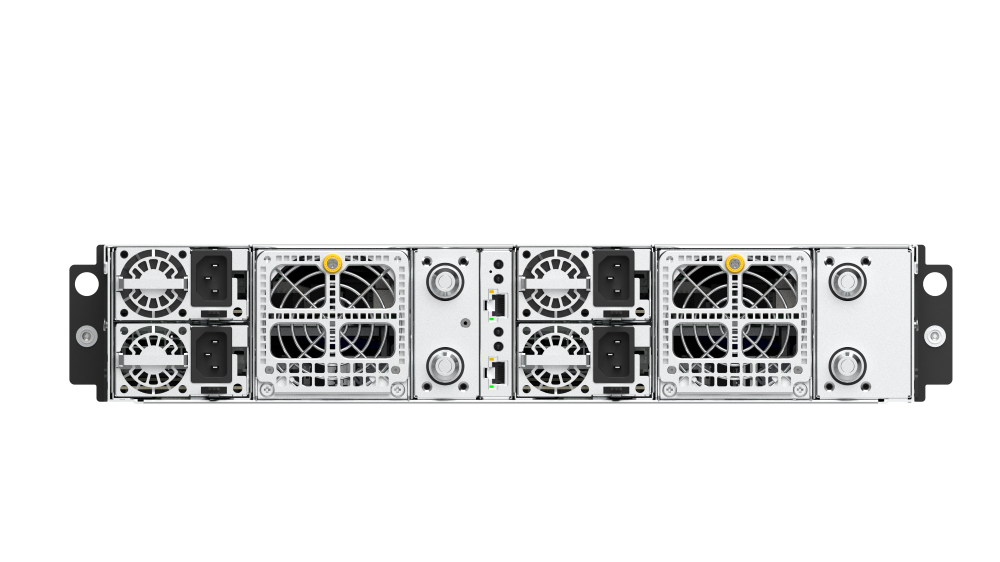

Rear:

•2 * CMC management ports
